- Monocrystalline silicon photovoltaic module
- SHUANGLIANG ECO-ENERGY SYSTEMS CO., LTD

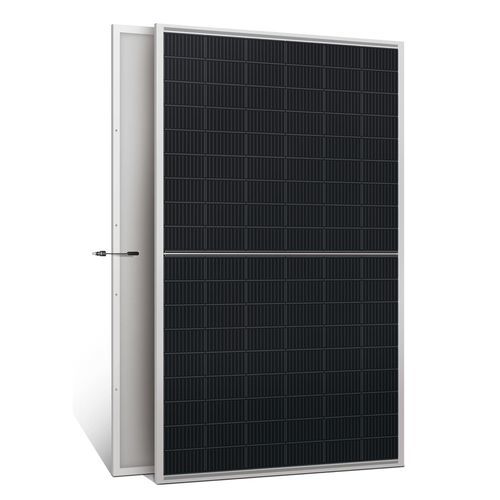

Monocrystalline silicon photovoltaic module SL-M10high-efficiencyIP68
Add to favorites
Compare this product
Characteristics
- Technology
- monocrystalline silicon
- Other characteristics
- high-efficiency, IP68
- Peak power (Wp)
Max.: 555 W
Min.: 530 W
- Module efficiency
21.6 %
Description
Product overview
Gigalumi SL-M10 is a P-type monocrystalline solar PV module designed for commercial and utility-scale solar installations.
Power
530-555W
Information
Function
Capacity Range
530-555W
Driving Sources
Technical specifications
Gigalumi SL-M10 is a P-type monocrystalline solar PV module designed for commercial and utility-scale solar installations.
Power
530-555W
Information
- Cell: P-type monocrystalline 182×91 mm
- Number of cells: 144 (6×24)
- Maximum efficiency: 21.6%
- Junction box: IP68 rated
- Maximum system voltage: 1500 V DC
- Operating temperature: -40℃ to +85℃
- Connectors: MC4 or MC4 compatible
Function
- Not specified on page
Capacity Range
530-555W
Driving Sources
- Not specified on page
Technical specifications
- Cell size: 182×91 mm
- Cell type: P-type monocrystalline
- Number of cells: 144 (6×24)
- Rated maximum power (Pmax): 555 W
- Power range: 530–555 W
- Maximum module efficiency: 21.6%
- Junction box rating: IP68
- Maximum system voltage: 1500 V DC
- Operating temperature range: -40℃ to +85℃
- Connectors: MC4 or MC4-compatible
