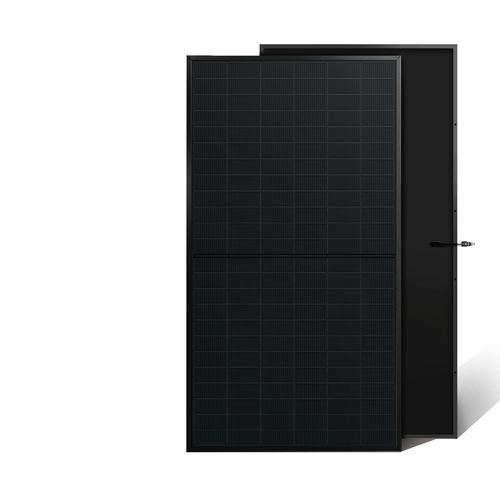

Monocrystalline silicon photovoltaic module SL-M10NB

roof-mountIP68rooftop

Product Overview
Gigalumi SL-M10NB solar module with N-type monocrystalline 182×91 mm cells, power range 550–570 W and rated maximum power up to 570 W. Suitable for large-scale PV installations, commercial and industrial rooftops and ground-mounted systems.

Information
Cell: N-type monocrystalline 182×91 mm
Number of cells: 144 cells (6×24)
Rated Maximum Power (Pmax): 570 W
Maximum Efficiency: 22.07%
Junction Box: IP68 rated
Maximum System Voltage: 1500 V DC
Operating Temperature: -40 to +85 °C
Connectors: MC4 or MC4 compatible

Function
The module converts solar irradiance into DC electricity for grid-tied and off-grid photovoltaic systems. Designed for string and array configurations in commercial and utility projects.

Capacity Range
Power range: 550–570 W (reference on page)

Driving Sources
Primary energy source: sunlight (solar irradiance). Compatible with standard PV balance-of-system components using MC4 connectors.

Typical Case
Application examples: utility-scale ground-mounted farms, commercial rooftops, industrial PV installations and distributed generation projects.

Technical specifications

• Cell type: N-type monocrystalline 182×91 mm
• Number of cells: 144 cells (6×24)
• Rated Maximum Power (Pmax): 570 W
• Maximum Efficiency: 22.07%
• Junction Box: IP68 rated
• Maximum System Voltage: 1500 V DC
• Operating Temperature: -40 to +85 °C
• Connectors: MC4 or MC4 compatible
• Power range referenced on page: 550-570 W
