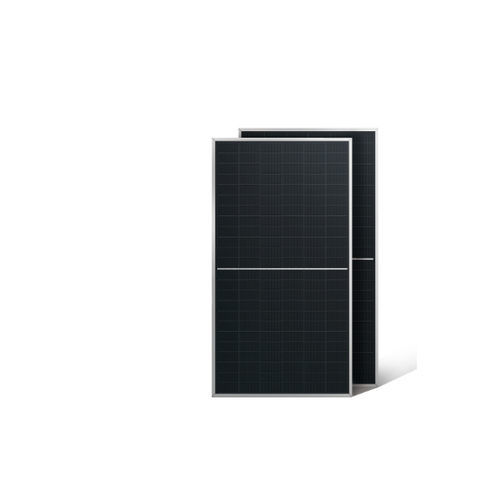

Monocrystalline silicon photovoltaic module SL-M10N

IP68

Product
Gigalumi SL-M10N 550-585W N-Type Solar Module

Overview
Power range: 550-585W

Information
Cell: N-Type Monocrystalline 182×91mm
No. of cells: 144 cells (6×24)
Rated Maximum Power (Pmax): 585W
Maximum Efficiency: 22.65%
Junction Box: IP68 rated
Maximum System Voltage: 1500V
Operating Temperature: -40~+85℃
Connectors: MC4 or MC4 Compatible

Function
Designed for utility-scale and commercial photovoltaic installations; suitable for on-grid systems and large-scale solar farms.

Capacity Range
550-585W

Driving Sources
PV arrays, string and central inverters; compatible with standard mounting structures and BOS components.

Technical specifications

• Cell type: N-Type Monocrystalline 182×91mm
• Number of cells: 144 (6×24)
• Rated Maximum Power (Pmax): 585W
• Maximum Efficiency: 22.65%
• Junction Box rating: IP68
• Maximum System Voltage: 1500V
• Operating Temperature: -40~+85℃
• Connectors: MC4 or MC4 Compatible
