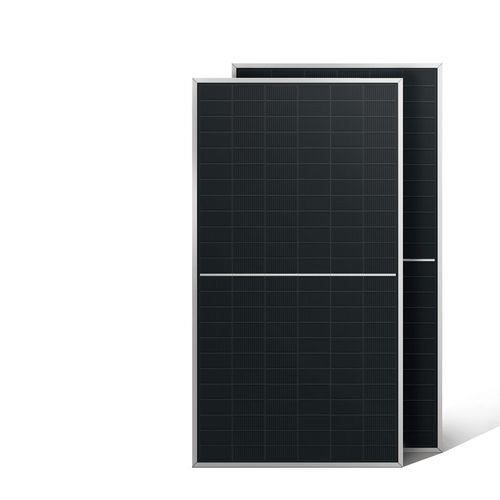

Monocrystalline silicon photovoltaic module SL-M10NS

high-efficiencyIP68rooftop

Product Overview
Gigalumi SL-M10NS solar photovoltaic module, power range 565–600 W. N-type monocrystalline 182×91 mm cells in a 144-cell (6×24) configuration for commercial and utility PV installations.

Information
Cell: N-type monocrystalline 182×91 mm
No. of cells: 144 cells (6×24)
Rated Maximum Power (Pmax): 600 W
Maximum Efficiency: 23.23%
Junction Box: IP68 rated
Maximum System Voltage: 1500 V DC
Operating Temperature: -40 ~ +85 °C
Connectors: MC4 or MC4 compatible

Function
Converts solar irradiance into direct current for grid-tied inverters and battery systems; suitable for rooftop and ground-mounted arrays in commercial and utility-scale projects.

Capacity Range
565–600 W

Driving Sources
Primary energy source: direct and diffuse solar radiation (sunlight); intended for photovoltaic power generation systems.

Technical specifications

• Cell type: N-type monocrystalline 182×91 mm
• Number of cells: 144 cells (6×24)
• Rated Maximum Power (Pmax): 600 W
• Maximum Efficiency: 23.23%
• Junction Box: IP68 rated
• Maximum System Voltage: 1500 V DC
• Operating Temperature: -40 ~ +85 °C
• Connectors: MC4 or MC4 compatible
