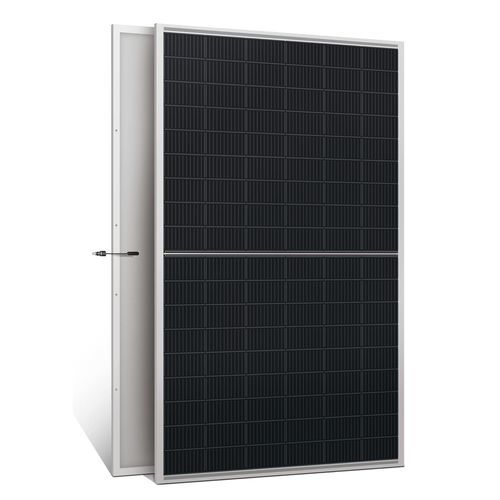

Monocrystalline silicon photovoltaic module SL-M10

high-efficiencyIP68

Overview
The Gigalumi SL-M10 is a 395–415W photovoltaic module designed for commercial and utility-scale PV installations. It uses 108 P-type monocrystalline cells to deliver up to 21.3% conversion efficiency.

Information
Cell : P Type Monocrystalline 182×91mm
No.of cells : 108 cells (6×18)
Rated Maximum Power (Pmax) : 415W
Power range : 395-415W
Maximum Efficiency : 21.3%
Junction Box : IP68 rated
Maximum System Voltage : 1500 V DC
Operating Temperature : -40℃～+85℃
Connectors : MC4 or MC4 Compatible

Technical specifications

• Cell: P Type Monocrystalline 182×91mm
• No. of cells: 108 cells (6×18)
• Rated Maximum Power (Pmax): 415W
• Power range: 395-415W
• Maximum Efficiency: 21.3%
• Junction Box: IP68 rated
• Maximum System Voltage: 1500 V DC
• Operating Temperature: -40℃～+85℃
• Connectors: MC4 or MC4 Compatible
