- Monocrystalline silicon photovoltaic module
- SHUANGLIANG ECO-ENERGY SYSTEMS CO., LTD

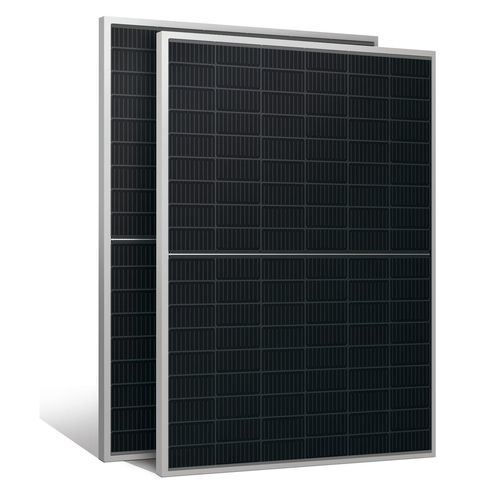

Monocrystalline silicon photovoltaic module SL-M10SrooftopIP68
Add to favorites
Compare this product
Characteristics
- Technology
- monocrystalline silicon
- Other characteristics
- rooftop, IP68
- Peak power (Wp)
Max.: 415 W
(0.56 hp)Min.: 395 W
(0.54 hp)- Module efficiency
21.3 %
- Lenght
182 mm
(7 in)- Width
91 mm
(4 in)
Description
Product Overview
The Gigalumi SL-M10S is a P-type monocrystalline photovoltaic module with a power range of 395–415 W and a maximum efficiency of 21.3%.
Key features
Technical specifications
Applications
Options and compliance
The Gigalumi SL-M10S is a P-type monocrystalline photovoltaic module with a power range of 395–415 W and a maximum efficiency of 21.3%.
- Power range: 395-415 W
Key features
- Cell: P-type monocrystalline 182×91 mm
- Number of cells: 108 (6×18)
- Maximum efficiency: 21.3%
- Junction box: IP68 rated
- Maximum system voltage: 1500 V DC
- Operating temperature: -40℃ to +85℃
- Connectors: MC4 or MC4 compatible
Technical specifications
- Rated maximum power (Pmax): 415 W
- Power tolerance: 395–415 W
- Cell dimensions: 182×91 mm
- Layout: 108 cells (6×18)
Applications
- Commercial and industrial rooftops
- Ground-mounted PV installations and utility-scale plants
Options and compliance
- Connector options: MC4 or MC4 compatible
- Junction box rating: IP68
- Designed for 1500 V DC system architectures; contact supplier for certifications and additional options
