- Monocrystalline silicon photovoltaic module
- SHUANGLIANG ECO-ENERGY SYSTEMS CO., LTD

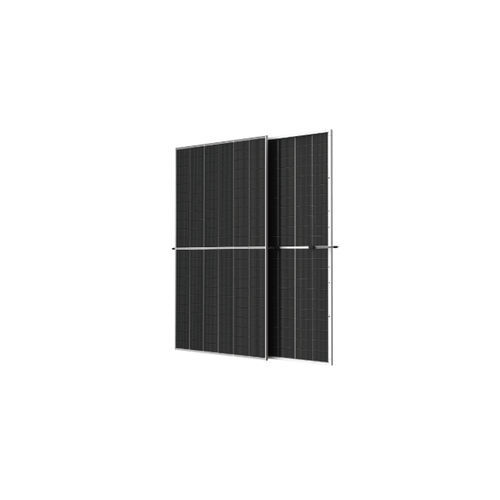

Monocrystalline silicon photovoltaic module SL-G12NShigh-efficiencyIP68
Add to favorites
Compare this product
Characteristics
- Technology
- monocrystalline silicon
- Other characteristics
- high-efficiency, IP68
- Peak power (Wp)
Max.: 700 W
Min.: 680 W
- Module efficiency
22.53 %
Description
Product
Gigalumi SL-G12NS
Overview
Power range: 680-700W
Rated maximum power (Pmax): 700W
Maximum efficiency: 22.53%
Junction box: IP68 rated
Maximum system voltage: 1500 V DC
Operating temperature: -40~+85 °C
Connectors: MC4 or MC4 compatible
Information
Cell: N-type monocrystalline 210×105 mm
No. of cells: 132 cells (6×22)
Features / technical specifications
Gigalumi SL-G12NS
Overview
Power range: 680-700W
Rated maximum power (Pmax): 700W
Maximum efficiency: 22.53%
Junction box: IP68 rated
Maximum system voltage: 1500 V DC
Operating temperature: -40~+85 °C
Connectors: MC4 or MC4 compatible
Information
Cell: N-type monocrystalline 210×105 mm
No. of cells: 132 cells (6×22)
Features / technical specifications
- Cell type: N-type monocrystalline 210×105 mm
- Number of cells: 132 cells (6×22)
- Rated Maximum Power (Pmax): 700 W
- Power range: 680-700 W
- Maximum Efficiency: 22.53%
- Junction Box: IP68 rated
- Maximum System Voltage: 1500 V DC
- Operating Temperature: -40~+85 °C
- Connectors: MC4 or MC4 compatible
