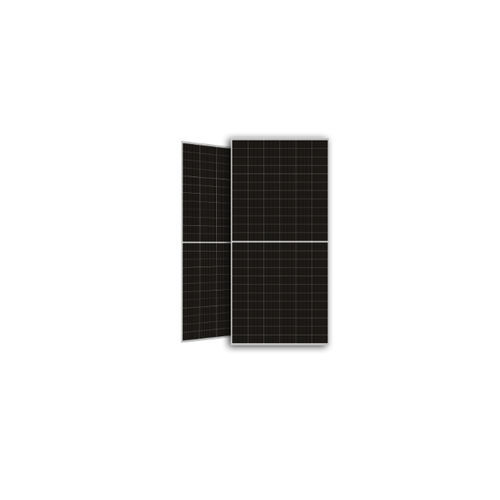

Monocrystalline silicon photovoltaic module SL-G11NS

high-performancehigh-efficiencyIP68

Information
Gigalumi SL-G11NS solar module with a rated maximum power of 610 W and a module power range of 595–610 W, designed for commercial and utility-scale photovoltaic installations.

Details
High-density 144-cell layout (6×24) using N-type monocrystalline cells for improved performance and low LID.

Function
Converts solar irradiance into DC electrical power for grid-tied or off-grid systems; compatible with standard PV inverters and mounting systems.

Capacity Range
Module power: 595–610 W (Pmax); nominal Pmax 610 W.

Driving Sources
Intended power source: photovoltaic (solar) arrays; integrates into 1500 V system architectures.

Technical specifications

• Cell type: N-type monocrystalline, 182.2×95.8 mm
• Number of cells: 144 cells (6×24)
• Rated Maximum Power (Pmax): 610 W
• Power range indicated: 595–610 W
• Maximum efficiency: 22.58%
• Junction box: IP68 rated
• Maximum system voltage: 1500 V
• Operating temperature: −40 to +85 °C
• Connectors: MC4 or MC4 compatible
