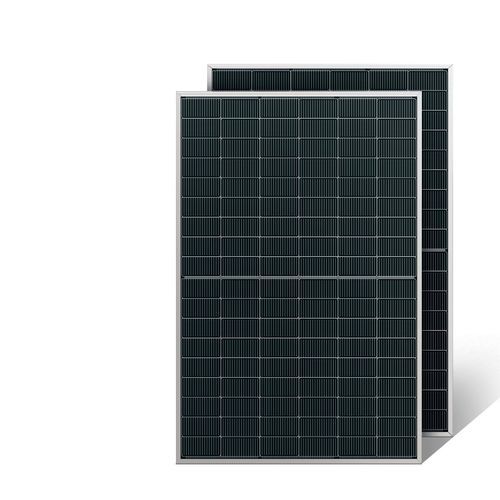

Monocrystalline silicon photovoltaic module SL-M10NS

IP68rooftop

Product Name
Gigalumi SL-M10NS Photovoltaic module 410-430W

Overview
Gigalumi SL-M10NS is an N-type monocrystalline photovoltaic module comprising 108 cells (6×18), intended for commercial and utility-scale PV installations. It delivers a rated maximum power up to 430 W and a maximum efficiency of 22.0%, with support for system voltages up to 1500 V and an IP68-rated junction box.

Key features

• Cell type: N-type monocrystalline 182×91 mm
• No. of cells: 108 (6×18)
• Power range: 410–430 W (Pmax 430 W)
• Maximum efficiency: 22.0%
• Junction box: IP68 rated
• Maximum system voltage: 1500 V
• Operating temperature: -40 to +85 °C
• Connectors: MC4 or MC4 compatible

Electrical specifications

• Rated maximum power (Pmax): 430 W
• Power bins: 410–430 W (see datasheet for tolerance and IV parameters)

Mechanical and environmental

• Cell size: 182×91 mm
• Module configuration: 6×18 (108 cells)
• Operating temperature range: -40 to +85 °C
• IP68-rated junction box for outdoor use

Applications

• Commercial and industrial rooftops
• Ground-mounted PV farms
• Utility-scale solar plants
• Industrial energy systems

Certifications & compliance
Certifications and test reports available on request.

Installation & handling

• Use MC4 or compatible connectors and follow local electrical codes
• Respect maximum system voltage (1500 V) and manufacturer installation guidelines

Packaging & options
Power bins and packaging options available; contact supplier for the datasheet and ordering information.
