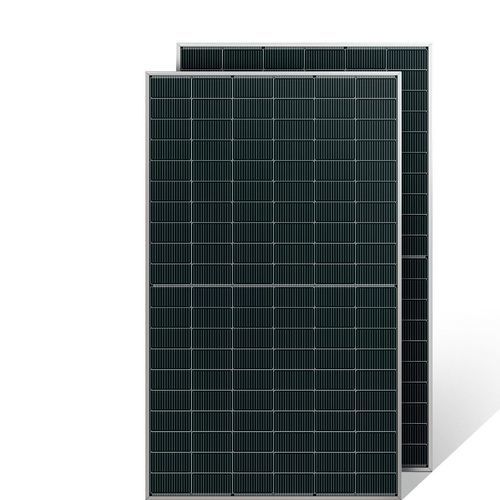

Monocrystalline silicon photovoltaic module SL-M10NS

high-efficiencyIP68rooftop

Product overview
Gigalumi SL-M10NS — 460–475 W monocrystalline photovoltaic module designed for utility-scale and commercial PV installations.

Technical information

• Cell: N-type monocrystalline 182 × 91 mm
• Number of cells: 120 (6 × 20)
• Rated maximum power (Pmax): 475 W
• Maximum efficiency: 22.0%
• Junction box: IP68 rated
• Maximum system voltage: 1500 V DC
• Operating temperature: -40 to +85 °C
• Connectors: MC4 or MC4 compatible

Function

• Utility-scale solar farms
• Commercial and industrial rooftop systems
• Ground-mounted PV installations

Capacity Range

• Rated output: 460 W — 475 W

Driving Sources

• Solar irradiation (photovoltaic DC)
• Compatible with string inverters and MPPT controllers

Technical specifications

• Model series: SL-M10NS
• Power range: 460–475 W
• Rated maximum power (Pmax): 475 W
• Maximum efficiency: 22.0%
• Cell type: N-type monocrystalline, 182 × 91 mm
• Number of cells: 120 cells (6 × 20)
• Junction box rating: IP68
• Maximum system voltage: 1500 V DC
• Operating temperature: -40 to +85 °C
• Connectors: MC4 or MC4 compatible
