Air filter FILTRASAN POCKET 15

dustpocketfor air treatment units

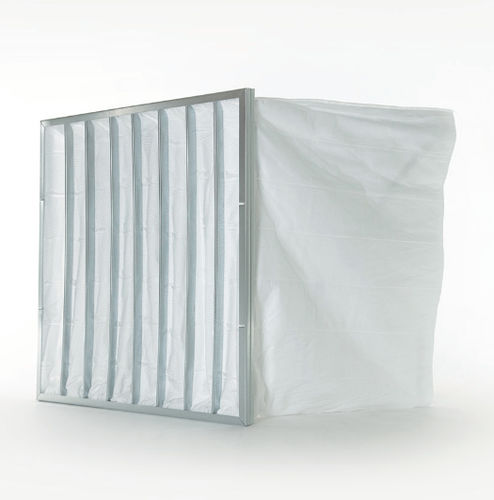

Soft synthetic pocket filter with U-section galvanised steel frame and FiltraSan™ sanitizing filter bags in 200 g/m2 polyester fibre with progressive density on the air outlet side. TECHNICAL CHARACTERISTICS AND LIMITS OF USE Efficiency class (CEN EN779-20 12): M5 Average gravimetrie efficiency: 96% Filter fabric basis weight: 200 gr/m² Thickness: 10-12 mm Relative humidity: 100 % Recommend ed final pressure drop: 250 Pa Maximum pressure drop: 400 Pa Dust collection capacity: 730 gr/m² Recommend ed frontal velocity: 1,5 m/s Reaction to fi re (DIN 53438/ 3): Class F1 DIN 4102/1: B2 NF-F-16-101: M1 GREEN BUILDING Contribute to obtain the credits of the major international rating systems for sustainable buildings: LEED: IP, EA, MR WELL: AIR, MATERIALS, COMMUNITY, INNOVATION BREEAM: MAN, WST FILTERING MEDIA FiltraSan sanitizing antibacterial and anti-mould filtering media – Sanitized® tested and certified APPLICATIONS Filtration in air treatment units of civil buildings and in painting plants. Prefilt ration of high-efficiency filters. PRODUCT DISPOSAL Dispose of t he product by separating the metal part from the filtering part. The CER code fa r disposal of the metal part is 120101. The CER co de far disposal of the filtering part is 150202.
