Air filter Pannel/Z-Pleat 19PPZpanelpolypropylenegalvanised steel
Add to favorites
Compare this product
Characteristics
- Designed for
- air
- Filtration element
- panel
- Material
- polypropylene, galvanised steel
- Norms
- F9
- Other characteristics
- pleated
- Operating pressure
191 Pa
(0.028 psi)- Flow
Min.: 1,530 m³/h
(54,031.44 ft³/h)Max.: 3,400 m³/h
(120,069.867 ft³/h)- Fluid temperature
60 °C
(140 °F)
Description

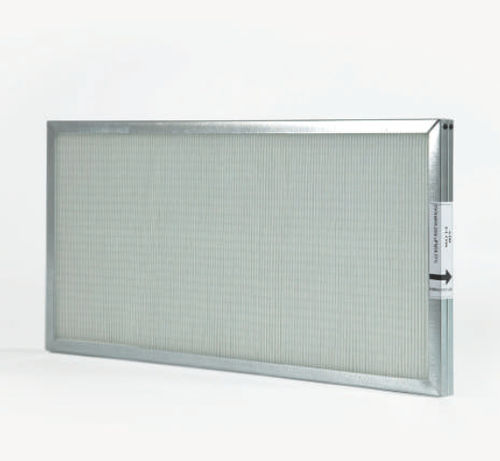

Filter panel with galvanised steel frame and pleated filter panel in polypropylene fibres with progressive density. Efficiency class F9. Frame with an easy opening for disposal.
TECHNICAL CHARACTERISTICS AND LIMITS OF USE
EN ISO 16890:2016 Group ISO ePM1 80%
Efficiency class EN779-2012: >F9
Average colorimetric efficiency: >95%
Airflow: 3400 m³/hpanel dimension 592x592x98air flow speed 2, 7 m/saverage speed 0,13m/s
Recommended final pressure drop: 300 Pa
Reaction to fire (DIN 53438/3): 300 Pa
GREEN BUILDING
Contribute to obtain the credits of the major international rating systems for sustainable buildings:
LEED: IP, EA, MR, IN
WELL: AIR, MATERIALS, COMMUNITY
BREEAM: MAN, WST
