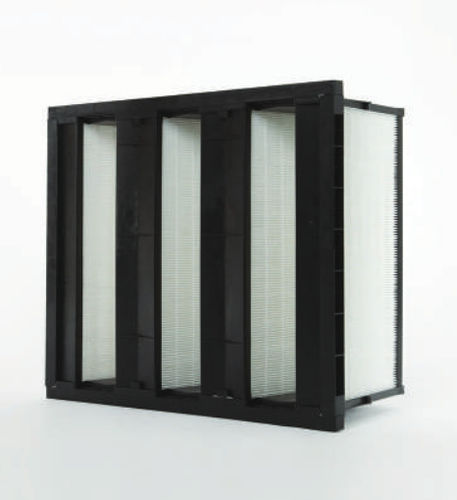

Air filter Glass-Pleat 19GP pocketfiberglasspolypropylene
Add to favorites
Compare this product
Characteristics
- Designed for
- air
- Filtration element
- pocket, fiberglass
- Material
- polypropylene
- Norms
- F9
- Other characteristics
- pleated
- Operating pressure
160 Pa
(0.023 psi)- Flow
Max.: 4,250 m³/h
(150,087.334 ft³/h)Min.: 2,000 m³/h
(70,629.333 ft³/h)- Fluid temperature
80 °C
(176 °F)
Description
Rigid pocket filters with high-resistance moulded polypropylene structure and filter medium in fireproof and water-repellent pleated micro glass fibre paper. Efficiency class F9.
TECHNICAL CHARACTERISTICS AND LIMITS OF USE
EN ISO 16890:2016 Group ISO ePM1 85%
Efficiency class (CEN EN779): F9
Average colorimetric efficiency: 90-95 %
MERV: 14
Relative humidity: 100 %
Recommended final pressure drop: 450 Pa
Maximum flow rate: 1 .3 times the nominai flow rate
Recommended filtering velocity: 0,065m/s
Reaction to fire (DIN 53438/3): Class F1
GREEN BUILDING
Contribute to obtain the credits of the major international rating systems for sustainable buildings:
LEED: IP, EA, MR, IN
WELL: AIR, MATERIALS, COMMUNITY
BREEAM: MAN, WST
