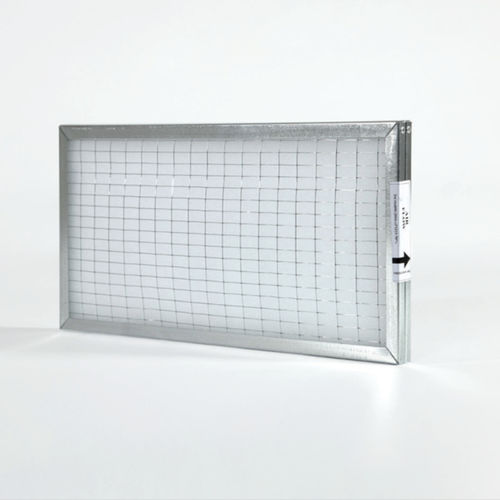

Air filter KAT200

dustpanelwire mesh

Synthetic flat filter celi with U-section galvanised steel frame and double electrowelded galvanised wire mesh that supports the filter fabric in AT200 series thermobonded synthetic polyester staple fibre with a basis weight of 200 g/m² and a thickness of 20 mm. TECHNICAL CHARACTERISTICS AND LIMITS OF USE EN ISO 16890:2016 Group ISO ePM10 50% (ePM1 = 8% – ePM2,5 = 17% – ePM10 = 53%) Efficiency class (CEN EN779-2012): G4 Average gravimetrie efficiency : 90% Filter fabric basis weight: 200gr/m² Thickness: 20-22 mm Relative humidity: 100% Initial pressure drop: 43 Pa thickness 23 mm – 54 Pa thickness 48 mm Recommended final pressure drop: 250 Pa Maximum pressure drop: 400 Pa Dust collection capacity: 351 gr/m² Recommended frontal velocity: 1,5 m/s v classe F1 NF-F-16-101: M1 GREEN BUILDING Contribute to obtain the credits of the major international rating systems for sustainable buildings: LEED: IP, EA, MR WELL: AIR, MATERIALS, COMMUNITY BREEAM: MAN, WST FILTERING MEDIA The calibrated-density synthetic fibre with high operating efficiency is composed of AT200 series thermobonded polyester staple fibre with a basis weight of 200 gr/m2 and a thickness of 20 mm. APPLICATIONS Air treatment units, prefiltration in high-efficiency filters. PRODUCT DISPOSAL Dispose of the product by separati ng the metal part from the filtering part. The CER code for disposal of the metal part is 120101. The CER code for disposal of the filtering part is 150202.
