Air filter Pannel/Z-Pleat 17PPZ panelpolypropyleneF7
Add to favorites
Compare this product
Characteristics
- Designed for
- air
- Filtration element
- panel
- Material
- polypropylene
- Norms
- F7
- Other characteristics
- pleated
- Operating pressure
122 Pa
(0.018 psi)- Flow
Max.: 3,400 m³/h
(120,069.867 ft³/h)Min.: 1,530 m³/h
(54,031.44 ft³/h)- Fluid temperature
60 °C
(140 °F)
Description

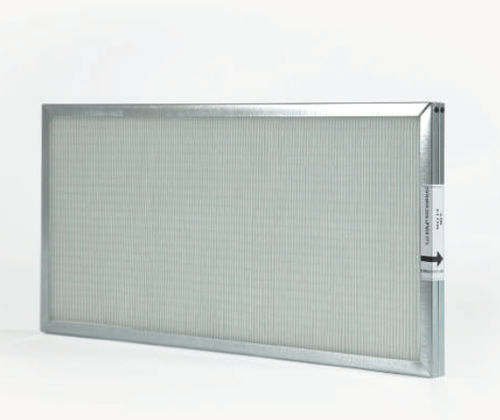

Filter panel with galvanised steel frame and pleated filter panel in polypropylene fibres with progressive density. Efficiency class F7. Frame with an easy opening for disposal.
TECHNICAL CHARACTERISTICS AND LIMITS OF USE
EN ISO 16890:2016 Group ISO ePM2,5 65%
Efficiency class EN779-2012: F7
Average colorimetric efficiency: 80-90 %
Airflow: 3400 m³/hpanel dimension 592x592x98air flow speed 2, 7 m/saverage speed 0,13m/s
Recommended final pressure drop:300Pa
Reaction to fire (DIN 53438/3): Class F1
GREEN BUILDING
Contribute to obtain the credits of the major international rating systems for sustainable buildings:
LEED: IP, EA, MR, IN
WELL: AIR, MATERIALS, COMMUNITY
BREEAM: MAN, WST
