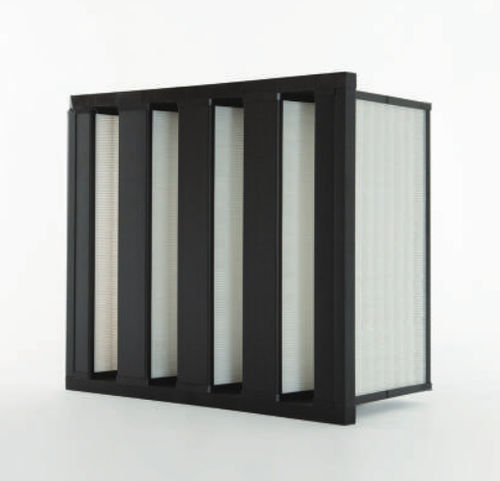

Air filter Poli-Pleat 19TRpocketpolypropyleneF9
Add to favorites
Compare this product
Characteristics
- Designed for
- air
- Filtration element
- Material
- polypropylene
- Norms
- F9
- Other characteristics
- pleated
- Operating pressure
132 Pa
(0.019 psi)- Flow
2,125 m³/h, 3,500 m³/h, 4,250 m³/h
(75,043.667 ft³/h, 123,601.334 ft³/h, 150,087.334 ft³/h)- Fluid temperature
90 °C
(194 °F)
Description
Rigid pocket filters with high-resistance moulded polypropylene structure and pleated filter medium in 100% polypropylene with progressive density. Efficiency class F9. Completely incinerable.
TECHNICAL CHARACTERISTICS AND LIMITS OF USE
EN ISO16890:2016 Group ISO ePM1 70%
Efficiency class (CEN EN779): F9
Average colorimetric efficiency: >95%
MERV: 15
Relative humidity: 100%
Recommended final pressure drop: 450Pa
Maximum flow rate: 1.3 times the nominai flow rate
Recommended filtering velocity: 0,065 m/s
Reaction to fire (DIN 53438/3): Class F1
GREEN BUILDING
Contribute to obtain the credits of the major international rating systems for sustainable buildings:
LEED: IP, EA, MR, IN
WELL: AIR, MATERIALS, COMMUNITY
BREEAM: MAN, WST
