Air filter Pannel-Pleat 19PPpanelpolypropylenegalvanised steel
Add to favorites
Compare this product
Characteristics
- Designed for
- air
- Filtration element
- panel
- Material
- polypropylene, galvanised steel
- Norms
- F9
- Other characteristics
- pleated
- Operating pressure
191 Pa
(0.028 psi)- Flow
Max.: 3,400 m³/h
(120,069.867 ft³/h)Min.: 1,530 m³/h
(54,031.44 ft³/h)- Fluid temperature
60 °C
(140 °F)
Description

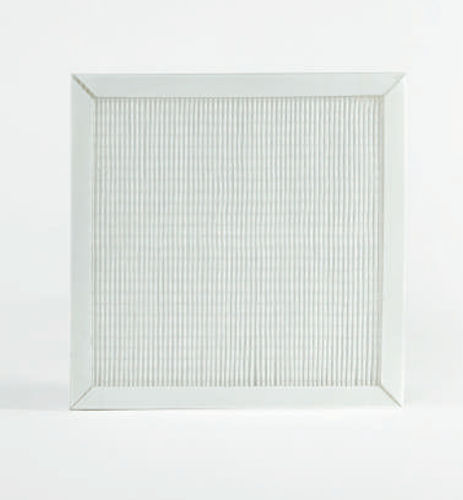

Filter panel with galvanised steel frame and pleated filter panel in polypropylene fibres with progressive density. Efficiency class F9.
TECHNICAL CHARACTERISTICS AND LIMITS OF USE
Efficiency class EN779-2012: F9
Average colorimetric efficiency: >95 %
Airflow: 3400 m³/hpanel dimension 592x592x98air flow speed 2,7 m/s
average speed 0,13m/s
Recommended final pressure drop: 300Pa
Reaction to fire (DIN 53438/3): Class F1
GREEN BUILDING
Contribute to obtain the credits of the major international rating systems for sustainable buildings:
LEED: IP, EA, MR, IN
WELL: AIR, MATERIALS, COMMUNITY
BREEAM: MAN, WST
