Air filter Carbo Pias
cartridgeactivated carbongalvanised steel

Air filter - Carbo Pias - TECNICA - cartridge / activated carbon / galvanised steel
Air filter - Carbo Pias - TECNICA - cartridge / activated carbon / galvanised steel
Add to favorites
Compare this product

Characteristics

Designed for
air
Filtration element
cartridge, activated carbon
Material
galvanised steel
Operating pressure

150 Pa
(0.022 psi)

Flow

1,500 m³/h, 2,000 m³/h, 2,350 m³/h, 3,000 m³/h, 3,500 m³/h
(52,972 ft³/h, 70,629.333 ft³/h, 82,989.467 ft³/h, 105,944 ft³/h, 123,601.334 ft³/h)

Fluid temperature

50 °C
(122 °F)

Description

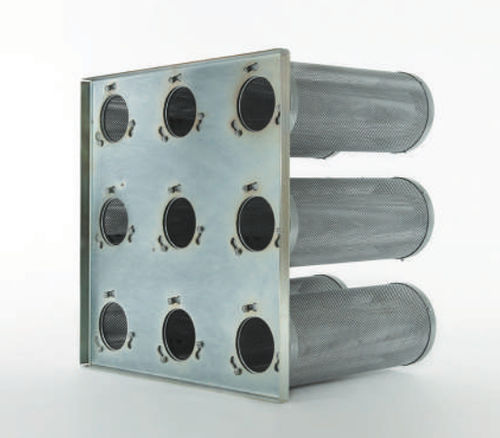

Active carbon adsorbent filter in cylindrical galvanised steel cartridges with filtering walls in microstretched mesh. The cartridges have a base with feet for hooking to the plate and a galvanised sheet steel cover that allows easy replacement of the exhausted active carbon. Perfect seal between the cartridge and the plate is assured by a polyurethane sealing ring. The plate configuration guarantees easy installation and maximum filtering and deodorant capacity in relation to the dimensions. TECHNICAL CHARACTERISTICS AND LIMITS OF USE Relative humidity: 70% Recommended filtering velocity: 0.3 m/s GREEN BUILDING Contribute to obtain the credits of the major international rating systems for sustainable buildings: LEED: IP, EA, MR WELL: MATERIALS, COMMUNITY BREEAM: MAN, WST
