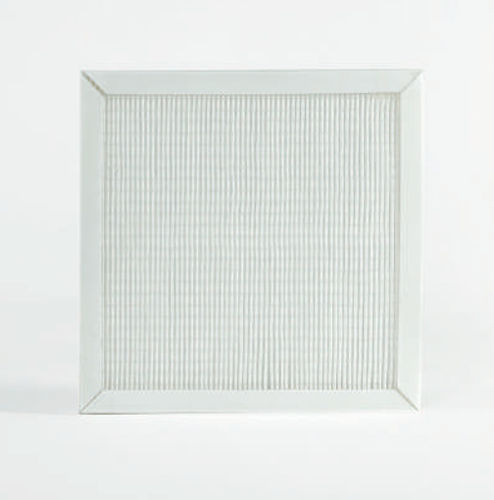

Air filter Pannel-Pleat 17PP
panelpolypropyleneF7

Air filter - Pannel-Pleat 17PP - TECNICA - panel / polypropylene / F7
Air filter - Pannel-Pleat 17PP - TECNICA - panel / polypropylene / F7
Add to favorites
Compare this product

Characteristics

Designed for
air
Filtration element
panel
Material
polypropylene
Norms
F7
Other characteristics
pleated
Operating pressure

122 Pa
(0.018 psi)

Flow

Max.: 3,400 m³/h
(120,069.867 ft³/h)

Min.: 1,530 m³/h
(54,031.44 ft³/h)

Fluid temperature

60 °C
(140 °F)

Description

Filter panel with high-resistance moulded polypropylene structure and pleated filter panel in polypropylene fibres with progressive density. Efficiency class F7. CARATTERISTICHE TECNICHE E LIMITI DI IMPIEGO Efficiency class EN779-2012: F7 Average colorimetric efficiency: 80-90 % panel dimension 592x592x98 air flow speed 2, 7 m/s average speed 0,13m/s Recommended final pressure drop: 300 Pa Reaction to fire (DIN 53438/3): Class F1 GREEN BUILDING Contribute to obtain the credits of the major international rating systems for sustainable buildings: LEED: IP, EA, MR, IN WELL: AIR, MATERIALS, COMMUNITY BREEAM: MAN, WST
