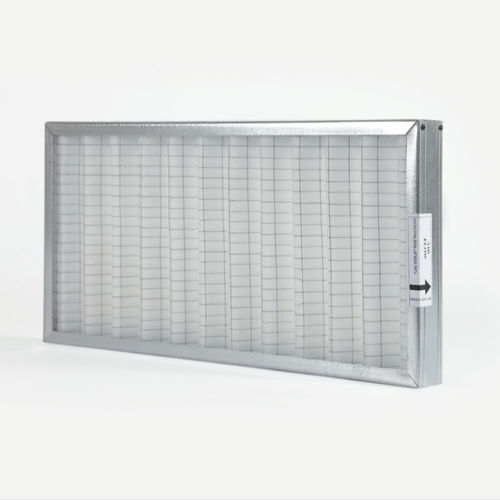

Air filter WZ5

dustpanelwire mesh

Pleated synthetic filter cell with U-section galvanised steel frame and double pleated electrowelded galvan ised wire mesh that su pports the filter fabric in AT500 series thermobonded synthetic polyester staple fibre with a basis weight of 200 g/m² and a thickness of 10-15 mm. TECHNICAL CHARACTERISTICS AND LIMITS OF USE EN ISO 16890:2016 Group ISO ePM10 50% Efficiency class (CEN EN779-2012): M5 Average gravimetrie efficiency:96% Filter fabric basis weight: 200gr/m² Thickness: 10-12 mm Relative humidity: 100% Recommended final pressure drop: 450 Pa Maximum pressure drop: 400 Pa Dust collection capacity: 730gr/m² Recommended frontal velocity: 1,5 m/s Filtering surface/fìlter surface ratio: 2: 1 for 48 mm thickness – 3: 1 for 98 mm thickness Reaction to fire (DIN 53438/3): class F1 DIN4102/1: B2 NF-F-16-101: M1 * A richiesta in spessori differenti. GREEN BUILDING Contribute to obtain the credits of the major international rating systems for sustainable buildings: LEED: IP, EA, MR WELL: AIR, MATERIALS, COMMUNITY BREEAM: MAN, WST PRODUCT DISPOSAL Dispose of the product by separating the metal part from the filtering part. The CER code for disposal of the metal partis 120101. The CER code for disposal of the filtering part is 150202.
