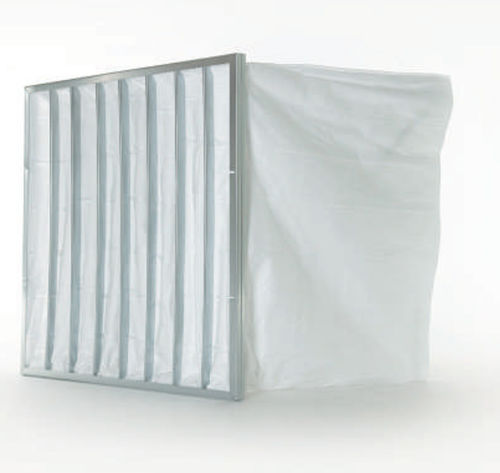

Air filter Soft Pocket 19TF dustpocketsynthetic
Add to favorites
Compare this product
Characteristics
- Designed for
- air, dust
- Filtration element
- Material
- synthetic, polypropylene
- Norms
- F9
- Operating pressure
85 Pa
(0.012 psi)- Flow
Min.: 750 m³/h
(26,486 ft³/h)Max.: 7,100 m³/h
(250,734.134 ft³/h)- Fluid temperature
90 °C
(194 °F)
Description
Soft synthetic pocket filter with U-section galvanised Steel trame and filter bags in 100% thermobonded polypropylene fibre with progressive density. Efficiency class F9.
COLOUR: - White
EFFICIENCY class (EN ISO 16890:2016) - Group ISO ePM1 70%
EFFICIENCY class (CEN EN779-2012) - F9
AVERAGE colorimétrie efficiency: - > 95%
RELATIVE humidity: - 100%
RECOMMENDED final pressure drop: - 450 Pa
MAXIMUM pressure drop: - 800 Pa
DUST ACCUMULATION capacity: - 30 gr/mq
