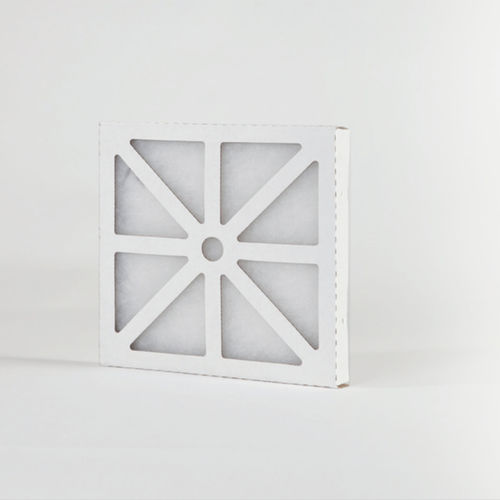

Air filter ACP

for paintdustpanel

Disposable flat filter cell composed of a robust punched cardboard box with large openings far air passage that supports the filter fabric in AT200 series thermobonded synthetic polyester staple fibre with a basis weight of 200 g/m 2 and a thickness of 20 mm. TECHNICAL CHARACTERISTICS AND LIMITS OF USEE EN ISO 16890:2016 Group ISO ePM10 50% (ePM1 = 8% – ePM2,5 = 17% – ePM10 = 53%) Efficiency class (CEN EN779): G4 Average gravimetrie efficiency: 90 % Filter fabric basis weight: 200 gr/m² Thickness: 20-22 mm Relative humidity: 100% Recommended final pressure drop: 250Pa Maximum pressure drop: 400Pa Dust collection capacity: 351 gr/m² Recommended frontal velocity: 1,5 m/s Reaction to fire (DIN 53438/3): Class F1 NF-F-16-101: M1 GREEN BUILDING Contribute to obtain the credits of the major international rating systems for sustainable buildings: LEED: IP, EA, MR WELL: AIR, MATERIALS, COMMUNITY BREEAM: MAN, WST FILTERING MEDIA The filter medium is made up of AT200 series thermobonded polyester staple fibre with a basis weight of 200 gr/m 2 and a thickness of 20 mm. APPLICATIONS Prefiltration of high-efficiency filters, filtration in painting booths. PRODUCT DISPOSAL The CER code for disposal of the filtering part is 150202.
