Air filter WZZ/A

oil mistfumedust

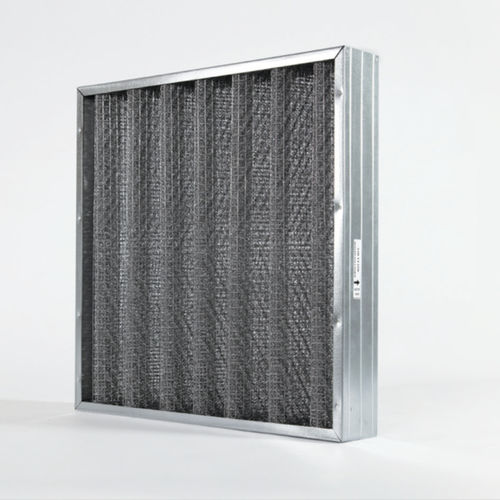

Metallic pleated filter cell with U-section galvanised steel frame and double pleated electrowelded galvanised wire mesh that supports the filter fabric in aluminium capped braid. TECHNICAL CHARACTERISTICS AND LIMITS OF USE EN ISO 16890:2016 Group ISO COARSE (ePM1 = 1% – ePM2,5 = 2% – ePM10 = 12%) Efficiency class (CEN EN779): G2 Average gravimetrie efficiency: 75 % Relative humidity: 100% Recommended final pressure drop: 150Pa Maximum pressure drop: 300Pa Recommended filtering velocity: 1-1,5 m/s Filtering surface/filter surface ratio:2: 1 for 48 mm thickness3: 1 for 98 mm thickness GREEN BUILDING Contribute to obtain the credits of the major international rating systems for sustainable buildings: LEED: IP, EA, MR WELL: MATERIALS, COMMUNITY BREEAM: MAN, WST FILTERING MEDIA The filtering media is composed of layers of metal mesh in aluminium capped braid. APPLICATIONS Prefiltration in high-efficiency filters, filtration of dry dust and oil mist, treatment of airborne fumes and greases. PRODUCT DISPOSAL Dispose of the product by separating the metal part from the liltering part. The CER code for disposal of the metal part is 120101. Warning: declare whether the filter to be disposed of contains toxic substances.
