Air filter Pannel-Pleat 15PP
panelpolypropyleneM5

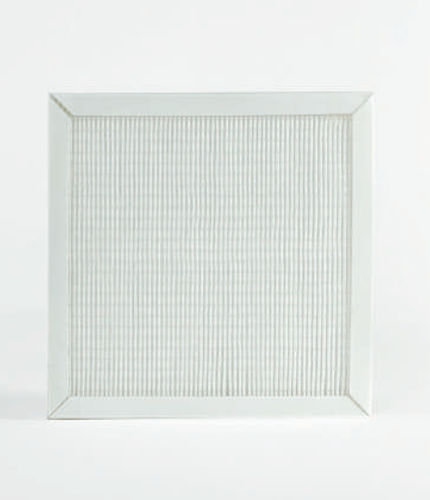

Air filter - Pannel-Pleat 15PP - TECNICA - panel / polypropylene / M5
Air filter - Pannel-Pleat 15PP - TECNICA - panel / polypropylene / M5
Add to favorites
Compare this product

Characteristics

Designed for
air
Filtration element
panel
Material
polypropylene
Norms
M5
Other characteristics
pleated
Operating pressure

47 Pa
(0.007 psi)

Flow

Min.: 1,530 m³/h
(54,031.44 ft³/h)

Max.: 3,400 m³/h
(120,069.867 ft³/h)

Fluid temperature

60 °C
(140 °F)

Description

Filter panel with high-resistance moulded polypropylene structure and pleated filter panel in polypropylene fibres with progressive density. Efficiency class MS. TECHNICAL CHARACTERISTICS AND LIMITS OF USE Efficiency class EN779-2012: M5 Average colorimetric efficiency: 40-60 % Airflow: panel dimension 592x592x98 air flow speed 2,7 m/s average speed 0,13m/s Recommended final pressure drop: 300Pa Reaction to fire (DIN 53438/3): Class F1 GREEN BUILDING Contribute to obtain the credits of the major international rating systems for sustainable buildings: LEED: IP, EA, MR WELL: MATERIALS, COMMUNITY, INNOVATION BREEAM: MAN, WST
