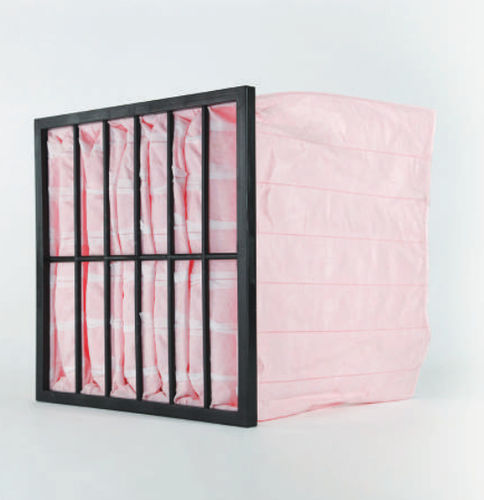

Air filter ECO Pocket 17EPdustpocketsynthetic
Add to favorites
Compare this product
Characteristics
- Designed for
- air, dust
- Filtration element
- Material
- synthetic, polypropylene
- Norms
- F7
- Operating pressure
64 Pa
(0.009 psi)- Flow
Max.: 5,900 m³/h
(208,356.534 ft³/h)Min.: 750 m³/h
(26,486 ft³/h)- Fluid temperature
90 °C
(194 °F)
Description
Soft synthetic pocket filter with incinerable plastic trame divided into two parts and filter bags in 100% thermobonded polypropylene fibre with progressive density. Efficiency class F7.
COLOUR: - Red
EFFICIENCY class (EN ISO 16890:2016) - Group ISO ePM10 85%
EFFICIENCY class (CEN EN779-2012) - F7
AVERAGE colorimétrie efficiency: - 80-85%
RELATIVE humidity: - 100%
RECOMMENDED final pressure drop: - 450 Pa
MAXIMUM pressure drop: - 800 Pa
DUST ACCUMULATION capacity: - 85 gr/mq
