CNC automatic lathe B0 series
2-axisprecisionhigh-productivity

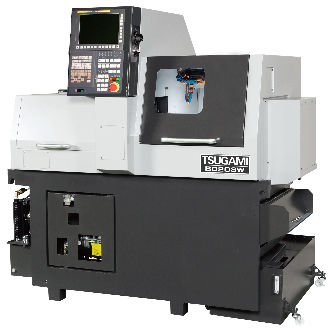

CNC automatic lathe - B0 series - Tsugami - 2-axis / precision / high-productivity
CNC automatic lathe - B0 series - Tsugami - 2-axis / precision / high-productivity
CNC automatic lathe - B0 series - Tsugami - 2-axis / precision / high-productivity - image - 2
CNC automatic lathe - B0 series - Tsugami - 2-axis / precision / high-productivity - image - 3
CNC automatic lathe - B0 series - Tsugami - 2-axis / precision / high-productivity - image - 4
Add to favorites
Compare this product

Characteristics

Control type
CNC
Number of axes
2-axis
Performance
precision, high-productivity
Other characteristics
Y-axis
Diameter

12 mm, 20 mm
(0.47 in, 0.79 in)

Spindle speed

8,000 rpm, 10,000 rpm, 12,000 rpm
(50,265.482 rad.min-1, 62,831.853 rad.min-1, 75,398.224 rad.min-1)

Rapids on X

12 m/min, 32 m/min

Rapids on Z

12 m/min, 32 m/min

Nominal power

1.5 kW, 2.2 kW, 3.7 kW
(2 hp, 3 hp, 5 hp)

Overall lenght

1,740 mm
(69 in)

Overall width

1,215 mm
(48 in)

Overall height

1,700 mm
(67 in)

Weight

2,150 kg
(4,740 lb)

Description

●The combination of independent opposed tool posts and the back tool post with Y axis enables the diverse simultaneous processing. ●The back tool post with Y axis enables the simultaneous operation of back side complex machining with main side machining. ●Modular tooling enables optimal tool allocation. Achieves high productivity with appropriate tooling and machining patterns. ●Automatic programming software is provided as standard

Catalogs

No catalogs are available for this product.

See all of Tsugami‘s catalogs

Other Tsugami products

Independent opposed gang tool post
