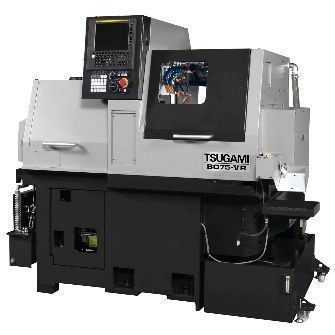

CNC automatic lathe B07 serieshigh-precision
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Performance
- high-precision
- Diameter
7 mm
(0.28 in)- Spindle speed
8,000 rpm, 12,000 rpm, 15,000 rpm
(50,265.482 rad.min-1, 75,398.224 rad.min-1, 94,247.78 rad.min-1)- Rapids on X
24 m/min, 36 m/min
- Rapids on Z
32 m/min, 36 m/min
- Nominal power
1.1 kW, 1.5 kW, 2.2 kW, 3.7 kW
(1.5 hp, 2 hp, 3 hp, 5 hp)- Overall lenght
1,055 mm
(42 in)- Overall width
1,565 mm, 1,750 mm
(62 in, 69 in)- Overall height
1,700 mm
(67 in)- Weight
1,350 kg, 1,800 kg
(2,976 lb, 3,968 lb)
Description
Overview
Ideal for machining high-precision micro parts such as telecom connectors and watch components. Designed for stable high-speed turning and excellent roundness in mass production or small-batch precision work.
Key features
Technical specifications
Ideal for machining high-precision micro parts such as telecom connectors and watch components. Designed for stable high-speed turning and excellent roundness in mass production or small-batch precision work.
Key features
- TSUGAMI unique chuck mechanism replaces the conventional toggle, providing faster response and improved balance for superior roundness at high spindle speeds.
- Ceramic ball bearings on the main spindle deliver a stable turning pattern, improved surface finish and extended tool life.
- Guide bushing clearance is easily adjustable from the tooling zone side to simplify setup and reduce downtime.
- Interference check function detects potential collisions and stops the machine with an alarm (applies to B075-ⅤR).
- Automatic programming software supplied as standard for efficient NC program generation.
Technical specifications
- Product category: CNC Precision Automatic Lathe
- Model: B073-ⅤR / B075-ⅤR
- Brand: PRECISION TSUGAMI
- Chuck mechanism: TSUGAMI unique chuck mechanism (toggle replaced) for fast response and improved balance
- Main spindle bearings: Ceramic ball bearings for stable turning and enhanced surface finish
- Guide bushing: Clearance adjustable from the tooling zone side
- Interference protection: Interference check function with alarm (applies to B075-ⅤR)
- Software: Automatic programming software included as standard
