CNC automatic lathe B038 series
vertical3-axis6-axis

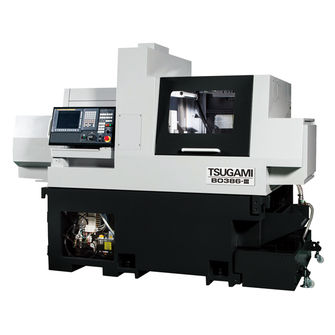

CNC automatic lathe - B038 series - Tsugami - vertical / 3-axis / 6-axis
CNC automatic lathe - B038 series - Tsugami - vertical / 3-axis / 6-axis
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle orientation
vertical
Number of axes
3-axis, 6-axis
Number of tool stations
34 tools
Performance
high-speed, precision
Other characteristics
Y-axis
Diameter

38 mm
(1.5 in)

Spindle speed

5,000 rpm, 6,000 rpm, 7,000 rpm
(31,415.927 rad.min-1, 37,699.112 rad.min-1, 43,982.297 rad.min-1)

Rapids on X

24 m/min, 32 m/min

Rapids on Z

24 m/min, 32 m/min

Nominal power

3.7 kW, 5.5 kW, 7.5 kW, 11 kW
(5 hp, 7.5 hp, 10.2 hp, 15 hp)

Overall lenght

1,515 mm
(60 in)

Overall width

2,770 mm
(109 in)

Overall height

2,050 mm
(81 in)

Weight

4,400 kg
(9,700 lb)

Description

Versatile functions on the compact body Enhanced variations and extensive options support diversified workpieces ●The back tool post with Y axis enables the simultaneous operation of back side complex machining with main side machining. (6-axis machine) ●Modular tooling enables optimal tool allocation. (Rear drive is an option.) ●Optional direct-drive guide bushing provides high-speed and accurate machining. ●Guide-bush type or guide-bushless type is selectable according to the workpiece. (Option) (L type is exclusive for guide-bushless machine.) ●Automatic programming software is provided as standard. ●Thanks to the thermal displacement compensation, the long-term stable production is realized. ●Enlarges the spindle ID, and bar end pre-turning is not necessary. ●"Al contour control Ⅱ and high-speed CPU" (option) enable high speed machining.
