CNC automatic lathe BM16 series
5-axishigh-precision

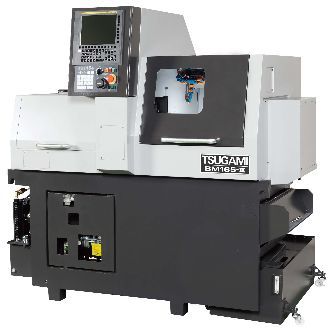

CNC automatic lathe - BM16 series - Tsugami - 5-axis / high-precision
CNC automatic lathe - BM16 series - Tsugami - 5-axis / high-precision
CNC automatic lathe - BM16 series - Tsugami - 5-axis / high-precision - image - 2
CNC automatic lathe - BM16 series - Tsugami - 5-axis / high-precision - image - 3
Add to favorites
Compare this product

Characteristics

Control type
CNC
Number of axes
5-axis
Performance
high-precision
Diameter

16 mm
(0.63 in)

Spindle speed

8,000 rpm, 12,000 rpm
(50,265.482 rad.min-1, 75,398.224 rad.min-1)

Rapids on X

24 m/min, 32 m/min, 36 m/min

Rapids on Z

24 m/min, 32 m/min, 36 m/min

Nominal power

2.2 kW, 3.7 kW, 5.5 kW
(3 hp, 5 hp, 7.5 hp)

Overall lenght

1,675 mm, 1,750 mm
(66 in, 69 in)

Overall width

1,055 mm
(42 in)

Overall height

1,700 mm
(67 in)

Weight

1,350 kg, 1,800 kg
(2,976 lb, 3,968 lb)

Description

Dedicated guide-bushless machine ●Ceramic ball bearings are adopted on the front bearing. ●Ground bar is not required. Enables high precision machining from cold-drawn bars. ●Interference check function detects interference before it occurs, and the machine is stopped by alarm. ●Automatic programming software is provided as standard.
