CNC automatic lathe B026 series
vertical6-axishigh-speed

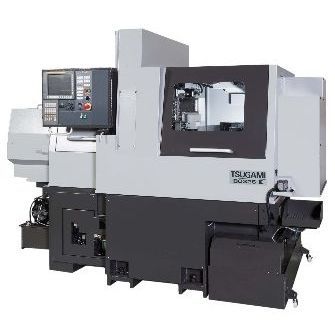

CNC automatic lathe - B026 series - Tsugami - vertical / 6-axis / high-speed
CNC automatic lathe - B026 series - Tsugami - vertical / 6-axis / high-speed
CNC automatic lathe - B026 series - Tsugami - vertical / 6-axis / high-speed - image - 2
CNC automatic lathe - B026 series - Tsugami - vertical / 6-axis / high-speed - image - 3
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle orientation
vertical
Number of axes
6-axis
Performance
high-speed, precision
Other characteristics
Y-axis, compact
Diameter

26 mm, 32 mm
(1.02 in, 1.26 in)

Spindle speed

6,000 rpm, 7,000 rpm, 8,000 rpm, 10,000 rpm
(37,699.112 rad.min-1, 43,982.297 rad.min-1, 50,265.482 rad.min-1, 62,831.853 rad.min-1)

Rapids on X

24 m/min, 35 m/min

Rapids on Z

24 m/min, 35 m/min

Nominal power

3.7 kW, 5.5 kW
(5 hp, 7.5 hp)

Overall lenght

1,270 mm
(50 in)

Overall width

2,630 mm
(104 in)

Overall height

1,970 mm
(78 in)

Weight

4,000 kg
(8,818 lb)

Description

Versatile functions on the compact body Enhanced variations and extensive options support diversified workpieces ●The back tool post with Y axis enables the simultaneous operation of back side complex machining with main side machining. (6-axis machine) ●Modular tooling enables optimal tool allocation. (Rear drive is an option.) ●Optional direct-drive guide bushing provides high-speed and accurate machining. ●Guide-bush type or guide-bushless type is selectable according to the workpiece. (Option) ●Automatic programming software is provided as standard. ●Thanks to the thermal displacement compensation, the long-term stable production is realized. ●Enlarges the spindle ID, and bar end pre-turning is not necessary. ●"Al contour control Ⅱ and high-speed CPU" (option) enable high speed machining.
