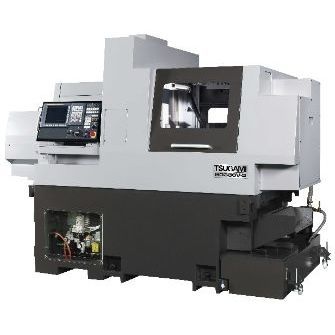

CNC automatic lathe B0 series vertical6-axis26 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Number of axes
- 6-axis
- Number of tool stations
- 26 tools
- Other characteristics
- high-speed, precision, Y-axis
- Diameter
38 mm
(1.5 in)- Spindle speed
5,000 rpm, 6,000 rpm, 7,000 rpm
(31,415.927 rad.min-1, 37,699.112 rad.min-1, 43,982.297 rad.min-1)- Rapids on X
24,000 mm/min
(16 in/s)- Rapids on Z
24,000 mm/min
(16 in/s)- Nominal power
3.7 kW, 7.5 kW, 11 kW
(5 hp, 10.2 hp, 15 hp)- Overall lenght
1,515 mm
(60 in)- Overall width
2,770 mm
(109 in)- Overall height
2,050 mm
(81 in)- Weight
4,850 kg
(10,692 lb)
Description
Large tooling space enables to perform suitable tooling according to the application.
●Live tools on front drive and back drive are modular type, and optimum tool allocation is possible.
●Optional direct-drive guide bushing provides high-speed and accurate machining.
●Guide-bush type or guide-bushless type is selectable according to workpieces. (option)
●Automatic programming software is provided as standard.
●Thanks to the thermal displacement compensation function, the long-term stable machining is realized.
●Enlarges the spindle ID, and bar end pre-turning is not necessary.
●Al contour control II and quick response for fine block (option) enable high speed machining.
