CNC automatic lathe B0 series
high-precision

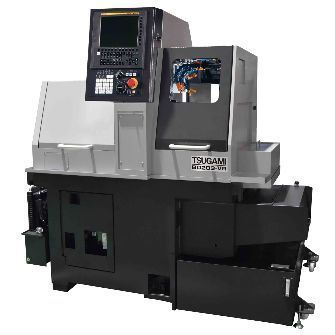

CNC automatic lathe - B0 series - Tsugami - high-precision
CNC automatic lathe - B0 series - Tsugami - high-precision
CNC automatic lathe - B0 series - Tsugami - high-precision - image - 2
CNC automatic lathe - B0 series - Tsugami - high-precision - image - 3
Add to favorites
Compare this product

Characteristics

Control type
CNC
Performance
high-precision
Diameter

12 mm, 20 mm
(0.47 in, 0.79 in)

Spindle speed

8,000 rpm, 10,000 rpm, 12,000 rpm
(50,265.482 rad.min-1, 62,831.853 rad.min-1, 75,398.224 rad.min-1)

Rapids on X

24 m/min

Rapids on Z

32 m/min

Nominal power

2.2 kW, 3.7 kW, 5.5 kW
(3 hp, 5 hp, 7.5 hp)

Overall lenght

1,055 mm
(42 in)

Overall width

1,675 mm
(66 in)

Overall height

1,700 mm
(67 in)

Weight

1,350 kg
(2,976 lb)

Description

Overview
High-precision machining is achieved through a fundamentally rigid machine design. The B0123-ⅤR and B0203-ⅤR models are configured to deliver efficient, repeatable production of turned components with minimal initial investment. Suitable for batch and continuous production of small to medium-sized parts across industrial sectors.

Key features
  • High-output built-in spindle motor increases machining capability and stable cutting performance.
  • Optional front live tool (maximum speed 10,000 min-1) reduces cycle time for small-hole drilling and milling operations.
  • Selectable guide-bushing or guide-bushless configuration to match workpiece type and process requirements (option).
  • Automatic programming software supplied as standard to simplify setup and shorten NC programming time.

Technical specifications
  • Product category: CNC precision automatic lathe
  • Models: B0123-ⅤR and B0203-ⅤR
  • Spindle: high-output built-in motor to strengthen machining capability
  • Live tool (front tool post) maximum speed: 10,000 min-1 (option)
  • Guide-bushing or guide-bushless selectable (option)
  • Automatic programming software: provided as standard
