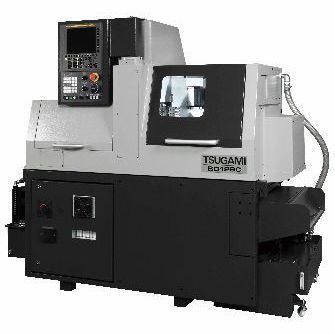

CNC automatic lathe B012 seriesprecisioncompact
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Performance
- precision
- Other characteristics
- compact
- Diameter
12 mm, 16 mm
(0.47 in, 0.63 in)- Spindle speed
8,000 rpm, 10,000 rpm, 12,000 rpm
(50,265.482 rad.min-1, 62,831.853 rad.min-1, 75,398.224 rad.min-1)- Rapids on X
24 m/min, 32 m/min
- Rapids on Z
32 m/min
- Nominal power
2.2 kW, 3.7 kW
(3 hp, 5 hp)- Overall lenght
865 mm
(34 in)- Overall width
1,840 mm
(72 in)- Overall height
1,720 mm
(68 in)- Weight
1,800 kg, 1,850 kg
(3,968 lb, 4,079 lb)
Description
Overview
Slim and compact models in the B012 series with reduced depth. The combination of a back spindle and a back tool post enables simultaneous back-side and main-side machining, improving process efficiency for small-part turning operations.
Features
Technical specifications
Slim and compact models in the B012 series with reduced depth. The combination of a back spindle and a back tool post enables simultaneous back-side and main-side machining, improving process efficiency for small-part turning operations.
Features
- Compact design by eliminating the machine's protruding area; depth reduced by 39% compared to conventional machines.
- Front tool post live tool (option) with maximum speed of 8,000 min-1 reduces cycle time for small hole drilling.
- Selectable guide-bushing or guide-bushless type to suit the workpiece (option).
- Interference check function detects potential collisions before they occur and stops the machine with an alarm.
- Automatic programming software supplied as standard to simplify setup and reduce programming time.
Technical specifications
- Series: B012 series
- Model: B0125C / B0126C
- Machine concept: Slim/compact design with 39% depth reduction versus conventional models
- Back machining: Combination of back spindle and back tool post enables simultaneous back-side and main-side machining
- Front tool post live tool (option): Maximum speed 8,000 min-1
- Guide bushing: Selectable guide-bushing or guide-bushless type (option)
- Safety/verification: Interference check function with alarm stop
- Software: Automatic programming software supplied as standard
