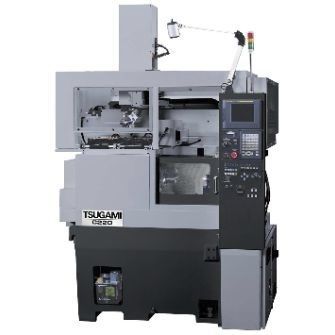

CNC automatic lathe C220 2-axishigh-speedhigh-precision
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Performance
- high-precision, high-speed
- Diameter
260 mm
(10.24 in)- Spindle speed
10,000 rpm, 12,000 rpm
(62,831.853 rad.min-1, 75,398.224 rad.min-1)- Axe X
220 mm
(9 in)- Axe Z
220 mm
(9 in)- Rapids on X
15 m/min
- Rapids on Z
15 m/min
- Nominal power
2.2 kW, 3.7 kW
(3 hp, 5 hp)- Overall lenght
1,461 mm
(58 in)- Overall width
15,000 mm
(591 in)- Overall height
1,590 mm
(63 in)- Weight
2,200 kg
(4,850 lb)
Description
Super precision mass production in sub-micron level
Least input increment of 0.01μm
●Laboratory class machining for production facilities
●Dimensional accuracy: 6σ＝0.5μm (brass)
●Minimum displacement of production from cold start and pause
●High speed machining is realized by integrated chuck and spindle.
●Micro taper machining and high-accuracy contouring are possible.
