CNC automatic lathe B0 series
27 toolscompact

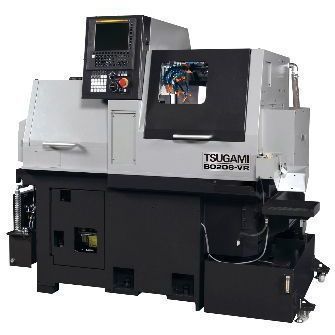

CNC automatic lathe - B0 series - Tsugami - 27 tools / compact
CNC automatic lathe - B0 series - Tsugami - 27 tools / compact
CNC automatic lathe - B0 series - Tsugami - 27 tools / compact - image - 2
Add to favorites
Compare this product

Characteristics

Control type
CNC
Number of tool stations
27 tools
Other characteristics
compact
Diameter

12 mm, 20 mm
(0.47 in, 0.79 in)

Spindle speed

8,000 rpm, 10,000 rpm, 12,000 rpm
(50,265.482 rad.min-1, 62,831.853 rad.min-1, 75,398.224 rad.min-1)

Rapids on X

24 m/min, 36 m/min

Rapids on Z

32 m/min, 36 m/min

Nominal power

2.2 kW, 3.7 kW, 5.5 kW
(3 hp, 5 hp, 7.5 hp)

Overall lenght

1,055 mm
(42 in)

Overall width

1,750 mm
(69 in)

Overall height

1,700 mm
(67 in)

Weight

1,800 kg, 1,850 kg
(3,968 lb, 4,079 lb)

Description

Overview
The combination of a back spindle and a back tool post enables simultaneous machining of the workpiece's back side and main side. Compact versions with a back tool post featuring a Y axis improve back-side machining capability (B0126-ⅤR/B0206-ⅤR).

Features
  • High-output built-in motors on the main and back spindles enhance machining performance.
  • The back tool post can be fitted with up to 6 live tools to address diverse back machining requirements (B0126-ⅤR/B0206-ⅤR).
  • A fixed-type chute reduces workpiece collection time to approximately one second, shortening cycle time.
  • Slide movement and live-tool start-up are optimized to reduce idle time.
  • Optional front tool post live tool (max. speed 10,000 min-1) reduces cycle time for small-hole drilling.
  • Selectable guide-bushing or guide-bushless configuration to suit different workpieces (option).
  • Interference-check function detects potential collisions in advance and stops the machine with an alarm.
  • Automatic programming software is supplied as standard.


Technical specifications
  • Product family: CNC Precision Automatic Lathe
  • Applicable models on this page: B0125-ⅤR, B0205-ⅤR, B0126-ⅤR, B0206-ⅤR
  • Back spindle and back tool post: simultaneous back and main-side machining capability
  • Back tool post with Y axis (compact machine)
  • Main and back spindle: high-output built-in motors
  • Back tool post: up to 6 live tools
  • Fixed-type chute: work collection time reduced to approximately one second
  • Front tool post live tool (optional): maximum speed 10,000 min-1
  • Guide-bushing: selectable guide-bushing or guide-bushless type (option)
  • Interference check function with alarm stop
  • Automatic programming software: supplied as standard
