CNC automatic lathe BW series
3-axis24 toolshigh-speed

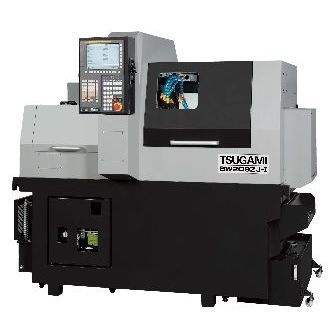

CNC automatic lathe - BW series - Tsugami - 3-axis / 24 tools / high-speed
CNC automatic lathe - BW series - Tsugami - 3-axis / 24 tools / high-speed
CNC automatic lathe - BW series - Tsugami - 3-axis / 24 tools / high-speed - image - 2
CNC automatic lathe - BW series - Tsugami - 3-axis / 24 tools / high-speed - image - 3
CNC automatic lathe - BW series - Tsugami - 3-axis / 24 tools / high-speed - image - 4
CNC automatic lathe - BW series - Tsugami - 3-axis / 24 tools / high-speed - image - 5
CNC automatic lathe - BW series - Tsugami - 3-axis / 24 tools / high-speed - image - 6
CNC automatic lathe - BW series - Tsugami - 3-axis / 24 tools / high-speed - image - 7
Add to favorites
Compare this product

Characteristics

Control type
CNC
Number of axes
3-axis
Number of tool stations
24 tools
Performance
high-precision, high-speed, high-productivity
Other characteristics
Y-axis
Diameter

12 mm, 20 mm
(0.47 in, 0.79 in)

Spindle speed

8,000 rpm, 10,000 rpm, 12,000 rpm
(50,265.482 rad.min-1, 62,831.853 rad.min-1, 75,398.224 rad.min-1)

Axe Z

60 mm
(2 in)

Rapids on X

12 m/min, 32 m/min

Rapids on Z

12 m/min, 32 m/min

Nominal power

1.5 kW, 2.2 kW, 3.7 kW
(2 hp, 3 hp, 5 hp)

Overall lenght

1,505 mm
(59 in)

Overall width

2,010 mm
(79 in)

Overall height

1,750 mm
(69 in)

Weight

2,850 kg, 2,900 kg
(6,283 lb, 6,393 lb)

Description

Drastically improved productivity by diverse simultaneous processing. Exceptionally shortened cycle time ●By simultaneous 3-path control on independent tool posts, diverse processing is possible. ●By moving 60 mm in Z-axis direction of the rear tool post, it can machine with the rear tool post even when a bar material cannot be retracted. ●Modular tooling enables optimal tool allocation. 　Achieves high productivity with appropriate tooling and machining patterns. ●Guide-bush type or guide-bushless type is selectable according to the workpiece. (Option) ●Automatic programming software is provided as standard.
