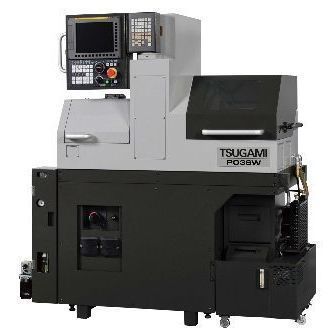

CNC automatic lathe P0 series

high-speedhigh-precisioncompact

Overview
The independent opposed tool post machine in the P0 series is designed for high-precision machining of micro products, combining a compact footprint and thermal stability for consistent dimensional accuracy.

Features

• High-speed spindle reduces machining time through optimized cutting speeds.
• Excellent roundness and low vibration at high speed achieved by TSUGAMI's unique chuck opening/closing mechanism.
• Numerically adjustable chuck gripping force via air regulators allows optimal clamping for thin workpieces.
• Full closed-loop control and well-placed linear guides enable high-precision fine shape machining.
• Thermal and stability measures minimize displacement from cold start or suspension to stabilize accuracy in continuous operation.
• Space-saving design with 600 mm depth.
• Independent opposed tool post minimizes idle time by preparing the next tool on the opposite post.
• Optional selection of optimal live tools on the front tool post to suit specific workpieces.
• Interference check function detects potential collisions and stops the machine with an alarm.

Technical specifications

• Machine type: Independent opposed tool post (P0 series) for micro product high-precision machining.
• Spindle: High-speed spindle for optimized cutting speed and reduced cycle time.
• Chuck mechanism: TSUGAMI unique chuck opening/closing mechanism for improved roundness and reduced vibration.
• Chuck gripping force: Numerically adjustable via air regulators for precise clamping of thin workpieces.
• Control: Full closed-loop control for precise fine shape machining.
• Guides: Appropriately positioned linear guides to ensure machining accuracy.
• Thermal/stability features: Measures to reduce displacement from cold start or suspension and stabilize dimensional accuracy during continuous operation.
• Footprint: Space-saving layout with 600 mm depth.
• Tooling: Independent opposed tool post to minimize idle time; optional live tools available for front tool post.
• Safety/verification: Interference check function with alarm to stop the machine when interference is detected.
