CNC automatic lathe P0 series
2-axisfor mass productionhigh-speed

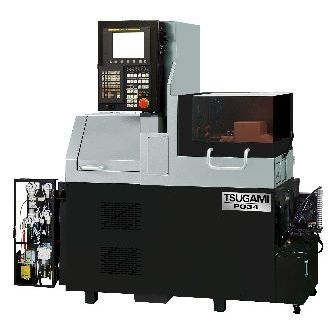

CNC automatic lathe - P0 series - Tsugami - 2-axis / for mass production / high-speed
CNC automatic lathe - P0 series - Tsugami - 2-axis / for mass production / high-speed
CNC automatic lathe - P0 series - Tsugami - 2-axis / for mass production / high-speed - image - 2
CNC automatic lathe - P0 series - Tsugami - 2-axis / for mass production / high-speed - image - 3
Add to favorites
Compare this product

Characteristics

Control type
CNC
Number of axes
2-axis
Applications
for mass production
Performance
high-speed, precision
Diameter

1 mm, 3 mm, 5 mm
(0.04 in, 0.12 in, 0.2 in)

Spindle speed

15,000 rpm, 20,000 rpm, 25,000 rpm
(94,247.78 rad.min-1, 125,663.706 rad.min-1, 157,079.633 rad.min-1)

Rapids on X

20 m/min

Rapids on Z

20 m/min

Nominal power

0.8 kW, 1.1 kW
(1.1 hp, 1.5 hp)

Coolant capacity

50 l
(13 gal)

Overall lenght

820 mm
(32 in)

Overall width

1,770 mm
(70 in)

Overall height

1,600 mm
(63 in)

Weight

1,000 kg, 1,050 kg
(2,205 lb, 2,315 lb)

Description

Optimum for mass production of micro products such as contact probe, watch parts ●Thanks to the measures for thermal displacement and automatic compensation function, displacement of production from cold start is minimized. ・Coolant tank capacity: 50L ・Fan cooling for coolant, cooling unit for X-/Y-axis motors, and tool-height displacement compensation system are provided as standard. ●High-speed spindle reduces the machining time by the optimum cutting speed. ●Excellent roundness without vibration during high-speed machining is achieved by TSUGAMI's unique chuck opening/closing mechanism. ●Chuck gripping force is numerically adjusted with air regulators so that the most suitable gripping force can be determined for thin workpiece. ●Provides easy-to-use software for machining small-dia and fine precision parts: Tool height compensation function. ●Optimal live tools of front tool post suited for the workpiece can be selected. (Option) ●Interference check function detects interference before it occurs, and the machine is stopped by alarm. (P054)
