CNC automatic lathe B07 series
precisioncompact

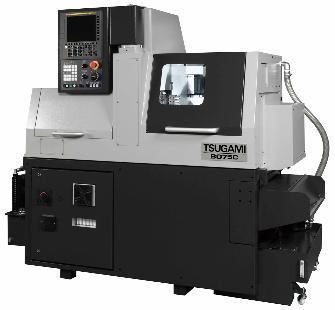

CNC automatic lathe - B07 series - Tsugami - precision / compact
CNC automatic lathe - B07 series - Tsugami - precision / compact
CNC automatic lathe - B07 series - Tsugami - precision / compact - image - 2
Add to favorites
Compare this product

Characteristics

Control type
CNC
Performance
precision
Other characteristics
compact
Diameter

7 mm
(0.28 in)

Spindle speed

8,000 rpm, 12,000 rpm, 15,000 rpm
(50,265.482 rad.min-1, 75,398.224 rad.min-1, 94,247.78 rad.min-1)

Rapids on X

24 m/min, 32 m/min

Rapids on Z

32 m/min

Nominal power

1.1 kW, 1.5 kW, 2.2 kW, 3.7 kW
(1.5 hp, 2 hp, 3 hp, 5 hp)

Overall lenght

865 mm
(34 in)

Overall width

1,620 mm, 1,840 mm
(64 in, 72 in)

Overall height

1,720 mm
(68 in)

Weight

1,380 kg, 1,800 kg
(3,042 lb, 3,968 lb)

Description

Overview
Slim and compact models in B07 series with reduced depth

Key features
  • Compact design by eliminating the protruded area of the machine. Compared to the conventional machine, the depth is reduced 39%.
  • The toggle is replaced with TSUGAMI’s unique chuck mechanism which provides quick response and better balance characteristics, contributing to finer roundness at high speed rotation.
  • Ceramic ball bearings are mounted on the main spindle which enables a stable turning pattern, improves surface roughness, and prolongs tool life.
  • The clearance of the guide bushing, an important factor for micro parts machining, can be easily adjusted from the tooling zone side.
  • Interference check function detects interference before it occurs, and the machine is stopped by alarm. (B075C)
  • Automatic programming software is provided as standard.

Features (visual)
Feature images available showing machine layout and details (graphics/illustrations).

Technical specifications
  • Model designation: B073C / B075C
  • Series: B07 series
  • Reduced depth: approx. 39% shallower than conventional model
  • Chuck mechanism: TSUGAMI unique chuck replacing conventional toggle for quicker response and improved balance
  • Main spindle bearings: Ceramic ball bearings for stable turning and improved surface finish
  • Guide bushing: Clearance adjustable from tooling zone side for micro parts machining
  • Interference detection: Interference check function with alarm and stop (applies to B075C)
  • Software: Automatic programming software included as standard
