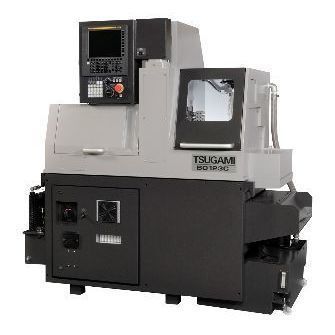

CNC automatic lathe B0123Ccompact
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Other characteristics
- compact
- Diameter
12 mm, 16 mm
(0.47 in, 0.63 in)- Spindle speed
10,000 rpm, 12,000 rpm
(62,831.853 rad.min-1, 75,398.224 rad.min-1)- Rapids on X
24 m/min
- Rapids on Z
32 m/min
- Nominal power
2.2 kW, 3.7 kW
(3 hp, 5 hp)- Overall lenght
865 mm
(34 in)- Overall width
1,620 mm
(64 in)- Overall height
1,720 mm
(68 in)- Weight
1,380 kg
(3,042 lb)
Description
Overview
Streamlined B012 series precision CNC automatic lathes with reduced depth for space-constrained production lines.
Key features
Characteristics / Technical specifications
Streamlined B012 series precision CNC automatic lathes with reduced depth for space-constrained production lines.
Key features
- Compact footprint by removing protruding machine areas; depth reduced by 39% vs conventional model.
- Optional live front tool post (max. 8,000 min-1) for high-speed small-hole drilling and reduced cycle times.
- Selectable guide-bushing or guide-bushless configurations to match workpiece requirements.
- Standard automatic programming software to simplify setup and program generation.
Characteristics / Technical specifications
- Product category: CNC Precision Automatic Lathe
- Model: B0123C
- Series: B012
- Machine depth: 39% reduction vs conventional model
- Front live tool post (option): max. 8,000 min-1
- Guide-bushing / guide-bushless: selectable (option)
- Automatic programming software: supplied as standard
