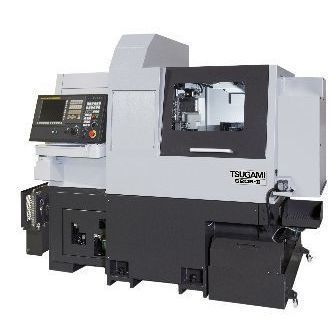

CNC lathe S20 serieshorizontalfor productionhigh-precision
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Applications
- for production
- Performance
- high-precision
- Diameter
20 mm
(0.79 in)- Spindle speed
8,000 rpm, 10,000 rpm
(50,265.482 rad.min-1, 62,831.853 rad.min-1)- Rapids on X
24 m/min, 35 m/min
- Rapids on Z
35 m/min
- Nominal power
2.2 kW, 3.7 kW
(3 hp, 5 hp)- Overall lenght
1,270 mm
(50 in)- Overall width
2,325 mm
(92 in)- Overall height
1,970 mm
(78 in)- Weight
3,750 kg
(8,267 lb)
Description
Product overview
Features
Technical specifications
- Precision CNC automatic lathe designed for variable-mix, variable-volume production of complex turned parts. Models: S205-Ⅱ / S206-Ⅱ.
Features
- Modular tooling enabling optimal tool allocation and fast reconfiguration.
- Back tool post with Y axis (S206-Ⅱ) for simultaneous backside and main-side machining.
- Thermal-displacement compensation to maintain dimensional accuracy during long runs.
- Automatic programming software supplied as standard for efficient process setup.
Technical specifications
- Model: S205-Ⅱ / S206-Ⅱ
- Product type: CNC precision automatic lathe
- Back tool post with Y axis: available on S206-Ⅱ for simultaneous back-side and main-side machining
- Tooling: Modular tooling for optimal tool allocation
- Compensation: Thermal displacement compensation for long-term dimensional stability
- Software: Automatic programming software included as standard
