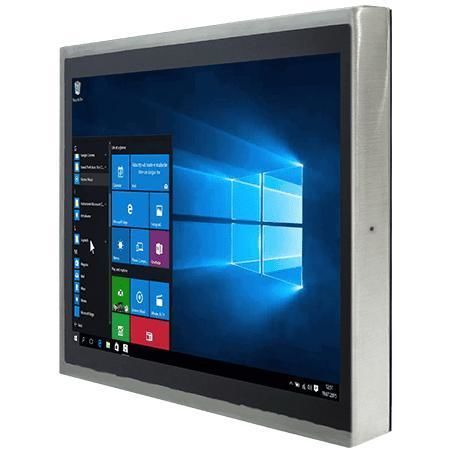

PCAP touchscreen panel PC R15IAD3S-SPC369

multitouch screenmulti-touch screen15"

Overview
The R15IAD3S-SPC369 is a 15" Intel® Core™ i5-1235U IP69K stainless PCAP chassis panel PC designed for hygienic and industrial environments. It features a full IP69K waterproof enclosure, SUS 316 / AISI 316 stainless steel housing, a true flat edge-to-edge front surface for easy cleaning, and multi-touch projected capacitive (P-CAP) support including glove and rain modes.
Key features

• 15", 1024 x 768 P-cap touch with flat design
• 12th Generation Intel® Core™ i5-1235U 3.3GHz (up to 4.40 GHz)
• SUS 316 / AISI 316 stainless steel for food and chemical industries
• Full IP69K waterproof enclosure
• True flat, easy-to-clean front surface with edge-to-edge design
• Plenty of I/Os, including USB 2.0, RS232 and RJ45-10/100/1000 LAN
• Waterproof ports with adapter cables for external connectivity
• Support VESA / YOKE mount
• Support Glove / Rain mode
• Optical bonding (optional)

Certifications

• IP69K
• FCC
• CE

Product details / Highlights

• Waterproof All-Around: Fully complies with IP69K water and dust resistance to survive splashing conditions and stringent cleanup processes in Food, Beverage, and Pharmaceutical industries.
• Comprehensive Stainless Solution: Designed for automation processes in food & beverage and chemical factories with a wide range of stainless human-machine interfaces and Panel PCs.
• Projected Capacitive Multi-Touch (P-CAP): Highly sensitive multi-touch supporting gestures (rotate, drag & drop, pinch-to-zoom) for efficient data entry and operation.

caractéristiques / spécifications techniques

• Display: Size: 15.0 inches; Touch / Glass: Projected Capacitive Multi Touch Screen; Resolution: 1024 x 768; Panel Brightness: 300 nits; Contrast Ratio: 2000:1; View Angles: 88,88,88,88; Active Area: 304.1 x 228.1 mm
• System Specification: Processor: Intel® Core™ i5-1235U 3.3 GHz (up to 4.40 GHz); Memory: 8GB (default) upgradable to 16GB or 32GB (optional); Storage: 128GB SSD (default), optional 256GB / 512GB / 1TB / 2TB / 4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional); Ethernet: 2 x Intel® Ethernet Controller; Security: TPM 2.0; Operating System: Windows 11 IoT Enterprise (64-bit) (optional), Windows 11 Pro 64-bit (optional), Linux Ubuntu 22.04 (optional, does not support Wake on Touch); WLAN: optional; Bluetooth: optional
• Mechanical: Dimension: 378 x 301 x 56.4 mm; Weight: 7.5 kg; Mounting: VESA mount (default), Yoke mount (optional); Enclosure: Stainless housing (SUS 316 / AISI 316); Cooling System: Fanless design
• Environment: Operating Humidity: 10% to 90% RH, non-condensing; Operating Temperature: 0°C to 45°C; Storage Temperature: -20°C to 60°C; IP rating: IP69K
• Certification: CE, FCC, IP69K
• IO Ports: USB Port: 1 x M12 waterproof connector for 2 x USB2.0; Serial Port: 1 x M12 waterproof connector for RS232; LAN: 1 x waterproof Giga LAN RJ45 connector; Indicator: 1 x LED indicator for power, 1 x LED indicator for storage; plus additional I/Os as standard for the product series
• Control: Buttons: 1 x Power Button; 1 x Reset Button
• Accessory: 100~240V AC to DC adapter with waterproof connector; Power cord; External USB/COM/LAN cables with waterproof connectors; Waterproof caps; Manual; VESA screws
• Power: Power Rating: 12V DC (M12 type)
