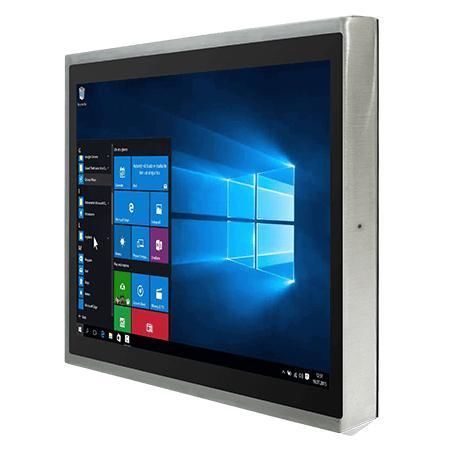

PCAP touchscreen panel PC R19IT3S-SPM169

multi-touch screen19"Intel® Core™ i5-1135G7

Overview
The R19IT3S-SPM169 is a 19" stainless steel IP69K chassis Panel PC designed for hygienic and washdown environments. It integrates an 11th Gen Intel® Core™ i5-1135G7, a projected capacitive (P‑CAP) multi-touch display and a fully waterproof SUS 316 / AISI 316 enclosure for food, beverage and chemical industry applications.

Key Features

• 19" 1280 x 1024 projected capacitive multi-touch (P-CAP) with true flat, edge-to-edge front
• 11th Gen Intel® Core™ i5-1135G7 (2.4GHz up to 4.2GHz)
• SUS 316 / AISI 316 stainless steel enclosure
• Full IP69K waterproof rating for washdown and hygiene compliance
• Glove and Rain touch modes supported
• Multiple I/Os: USB 2.0 (M12), RS232 (M12), Waterproof Gigabit RJ45
• Waterproof ports with adapter cables for external connectivity
• VESA mount standard; YOKE mount optional
• Optional optical bonding; fanless design

Certifications

• IP69K
• FCC
• CE

Product Highlights

• Waterproof All-Around: IP69K protection supports high-pressure washdown and strict hygiene procedures.
• Complete Stainless Solution: Built for automation in food & beverage and chemical plants where corrosion resistance and cleanability are required.
• P-CAP Multi-Touch: High-sensitivity multi-touch supporting gestures and multi-finger inputs, including Glove and Rain modes.

Technical specifications

• Model: R19IT3S-SPM169
• Display Size: 19.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (P-CAP)
• Resolution: 1280 x 1024
• Panel Brightness: 250 nits
• Contrast Ratio: 1000:1
• View Angles: 85/85/80/80
• Active Area: 376.32 x 301.06 mm
• Processor: Intel® Core™ i5-1135G7 2.4GHz (up to 4.2GHz)
• Memory: 4GB default; options 8GB/16GB/32GB
• Storage: 128GB SSD default; options up to 4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional)
• Ethernet: 2 x Intel® Ethernet Controller
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise / Windows 11 Pro / Linux Ubuntu 22.04 (optional; Wake on Touch not supported on Ubuntu)
• WLAN / Bluetooth: optional
• Dimensions: 468 x 395 x 57 mm
• Mounting: VESA (default); YOKE optional
• Enclosure: SUS 316 / AISI 316 stainless steel
• Cooling: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP Rating: IP69K
• IO Ports: 1 x M12 waterproof connector for 2 x USB 2.0; 1 x M12 waterproof connector for RS232; 1 x Waterproof Giga LAN RJ45 connector
• Indicators: 1 x LED for power; 1 x LED for storage
• Controls: 1 x Power button; 1 x Reset button
• Accessories: 100~240V AC-DC adapter with waterproof connector; power cord; external USB/COM/LAN cables with waterproof connectors; waterproof caps; manual; VESA screws
• Power: 12V DC (M12 type)
