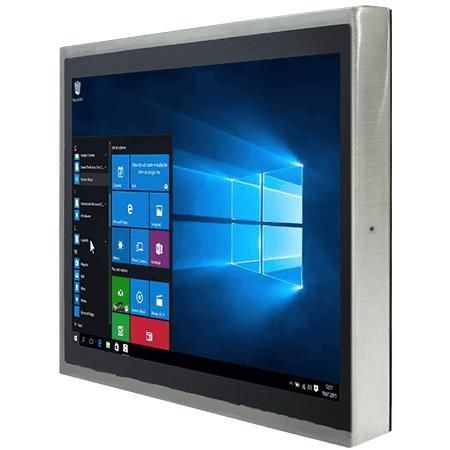

PCAP touchscreen panel PC R15IT3S-SPC369

multi-touch screen15"Intel® Core™ i5-1135G7

Product Overview
The R15IT3S-SPC369 is a 15" IP69K stainless steel chassis Panel PC with a projected capacitive (P‑CAP) multi‑touch display, 11th Generation Intel® Core™ i5‑1135G7 processor and SUS 316 / AISI 316 enclosure designed for hygienic and wash‑down industrial environments such as food, beverage, chemical and pharmaceutical production.

Key Features

• 15" display, 1024 x 768 P‑CAP touch with true flat, edge‑to‑edge design
• Intel® Core™ i5‑1135G7 (2.4GHz, up to 4.2GHz)
• SUS 316 / AISI 316 stainless steel housing suitable for food and chemical industries
• Full IP69K waterproof enclosure for high‑pressure, high‑temperature washdowns
• Multiple I/Os including USB 2.0, RS232 and RJ45 (10/100/1000) Gigabit LAN
• Waterproof ports with adapter cables for external connectivity
• Support for VESA mounting and optional YOKE mount
• Glove and Rain touch modes; optional optical bonding

Certifications

• IP69K
• FCC
• CE

Highlights

• Waterproof All‑Around: Designed to meet IP69K for rigorous cleaning and strict hygiene procedures.
• Comprehensive Stainless Solution: Stainless HMI and Panel PC for automation in food, beverage and chemical factories.
• Projected Capacitive Multi‑Touch (P‑CAP): Sensitive multi‑touch support for gestures, rotation, drag‑and‑drop and multi‑finger zoom; glove and rain modes available.

Technical specifications

• Model: R15IT3S-SPC369
• Display: 15.0 inches; Projected Capacitive Multi Touch; Resolution 1024 x 768; Panel brightness 300 nits; Contrast 2000:1; Active area 304.1 x 228.1 mm
• System: Intel Core i5‑1135G7 2.4GHz (up to 4.2GHz); Memory 4GB (default) — options 8GB/16GB/32GB; Storage 128GB SSD (default) — options up to 4TB; 1 x SATA III for 2.5" SSD/HDD (optional); 2 x Intel® Ethernet Controller; TPM 2.0 supported; OS options: Windows 11 IoT Enterprise, Windows 11 Pro, Ubuntu 22.04
• Mechanical: Dimensions 378 x 301 x 56.4 mm; Weight 7.5 kg; VESA mount (std) / Yoke (opt); Stainless enclosure; Fanless cooling
• Environment: Operating humidity 10%–90% RH non‑condensing; Operating temp 0°C–45°C; Storage temp ‑20°C–60°C; IP rating IP69K
• I/O: 1 x M12 waterproof connector for 2 x USB2.0; 1 x M12 waterproof connector for RS232; 1 x Waterproof Giga LAN RJ45 connector; LED indicators for power and storage
• Control: 1 x Power button; 1 x Reset button
• Power: Rated 12V DC (M12 type)

Included / Available Accessories

• 100~240V AC to DC adapter with waterproof connector
• Power cord
• External USB, COM and LAN cables with waterproof connectors
• Waterproof caps
• Manual
• VESA screws

Notes
The product supports optional memory and storage configurations, optional optical bonding, optional YOKE mount and optional WLAN/BT modules. TPM 2.0 is supported for platform security.
