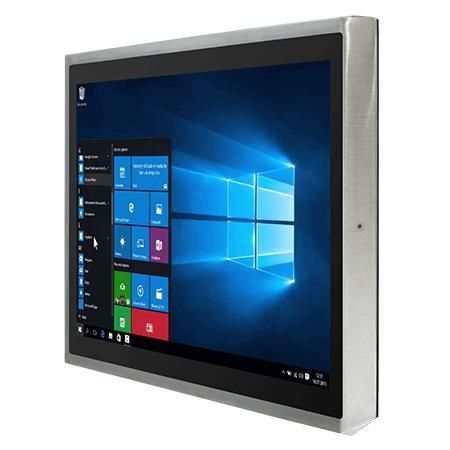

PCAP touchscreen panel PC R19IAD3S-SPM169

multi-touch screen19"Intel® Core i5-1235U

Product Overview
The R19IAD3S-SPM169 is a 19" stainless-steel chassis Panel PC engineered for hygienic and harsh industrial environments. It combines a SUS316/AISI316 housing with a true edge-to-edge projected capacitive (P-CAP) touchscreen and a full IP69K waterproof enclosure. Designed for food & beverage, pharmaceutical and chemical processing where high hygiene and washdown resistance are required.

Key Features

• 19", 1280 x 1024 projected capacitive multi-touch with true flat, edge-to-edge front
• 12th Gen Intel® Core™ i5-1235U 3.3GHz (up to 4.40 GHz)
• SUS 316 / AISI 316 stainless steel enclosure for corrosion resistance
• Full IP69K waterproof and dustproof enclosure
• Glove and Rain touch modes supported
• Extensive I/O: USB2.0, RS232, RJ45 10/100/1000
• M12 waterproof connectors and external adapter cables for field wiring
• VESA mount standard; YOKE mount optional
• Optional optical bonding

Certifications

• IP69K
• FCC
• CE

Product Details

• Waterproof All-Around — IP69K rating ensures resistance to high-pressure, high-temperature washdowns and protection against dust ingress.
• Stainless-steel construction — SUS316 / AISI316 housing provides chemical and corrosion resistance suitable for food, beverage and chemical plants.
• Projected Capacitive Multi-Touch (P-CAP) — High sensitivity multi-touch supporting gestures; glove and rain modes enable reliable operation in industrial conditions.

Technical specifications

• Display: 19.0 inches; Touch/Glass: Projected Capacitive Multi Touch Screen; Resolution: 1280 x 1024; Panel Brightness: 250 nits; Contrast Ratio: 1000:1; View Angles: 85/85/80/80; Active Area: 376.32 x 301.06 mm
• Processor: Intel® Core™ i5-1235U 3.3GHz (up to 4.40 GHz)
• Memory: 8GB (Default); Optional: 16GB, 32GB
• Storage: 128GB SSD (Default); Optional: 256GB, 512GB, 1TB, 2TB, 4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional)
• Ethernet: 2 x Intel® Ethernet Controller
• Security: TPM 2.0
• Operating Systems (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (does not support Wake on Touch)
• WLAN / Bluetooth: Optional
• Mechanical: Dimensions 468 x 395 x 57 mm; Mounting: VESA (default), YOKE (optional); Enclosure: Stainless Housing (SUS316/AISI316); Cooling: Fanless Design
• Environment: Operating Humidity 10% to 90% RH non-condensing; Operating Temperature 0°C to 45°C; Storage Temperature -20°C to 60°C; IP rating: IP69K
• Certification: CE, FCC
• I/O Ports: 1 x M12 waterproof connector for 2 x USB2.0; 1 x M12 waterproof connector for RS232; 1 x waterproof Giga LAN RJ45 connector; Indicators: 1 x LED for power; 1 x LED for storage
• Control: 1 x Power Button; 1 x Reset Button
• Accessories (included/optional): 100~240V AC to DC adapter with waterproof connector; power cord; external USB/COM/LAN cables with waterproof connectors; waterproof caps; manual; VESA screws
• Power: 12V DC (M12 type)
