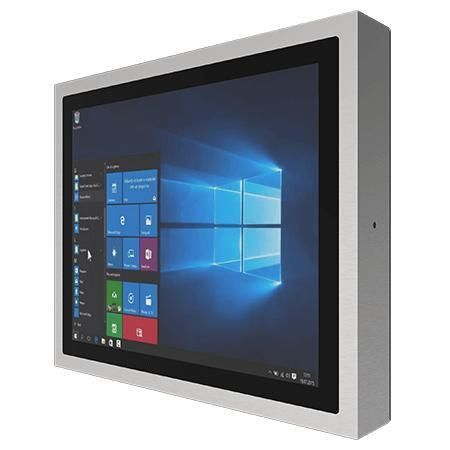

PCAP touchscreen panel PC R17IE3S-SPM169

multitouch screen17"Intel® Atom x6413E

Overview
The R17IE3S-SPM169 is a 17" PCAP panel PC with an Intel Atom® x6413E processor and a SUS316 stainless-steel enclosure. It is fully IP69K rated for high-pressure/high-temperature washdown and hygiene-critical environments in food, beverage, pharmaceutical and chemical industries.

Key Features

• 17" 1280 x 1024 projected capacitive (PCAP) multi-touch touchscreen
• Intel Atom® x6413E (Elkhart Lake)
• SUS316 / AISI 316 stainless steel enclosure
• Full IP69K protection
• Waterproof ports with adapter cables for external connectivity
• VESA mount (standard) and optional YOKE mount
• Glove and Rain touch modes supported
• Optical bonding (optional)

Certifications

• IP69K
• FCC
• CE

Product details
The unit provides a corrosion-resistant HMI solution for automation and control where regular washdowns and strict hygiene are required. The high-sensitivity PCAP touchscreen supports multi-finger gestures for efficient operator interaction and data entry.

Specifications

• Model: R17IE3S-SPM169
• Brand: Winmate
• Display Size: 17.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (P-CAP)
• Resolution: 1280 x 1024
• Panel Brightness: 350.0 nits
• Contrast Ratio: 1000:1
• View Angles: 85,85,80,80
• Active Area: 337.920 x 270.336 mm
• Processor: Intel Atom® x6413E (up to 3.0 GHz)
• Memory: 4GB (Default); 8GB (Optional); 16GB (Optional)
• Storage: 128GB SSD (Default); 256GB, 512GB, 1TB, 2TB (Optional)
• Ethernet controller: 1 x Intel® Ethernet Controller
• Operating System: Windows 11 IoT Enterprise (64 bit) (Optional); Windows 11 Pro 64 bit (Optional); Windows 10 IoT Enterprise (64 bit) (Optional); Linux Ubuntu 22.04 (Optional)
• WLAN: Support (Optional)
• Bluetooth: Support (Optional)
• Dimension: 412 x 344 x 61.3 mm
• Mounting: VESA mount (Default); Yoke mount (Optional)
• Enclosure: Stainless Housing (SUS 316 / AISI 316)
• Cooling System: Fanless Design
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP rating: IP69K
• Certification: CE, FCC
• USB Port: 1 x M12 Waterproof Connector for 2 x USB2.0
• Serial Port: 1 x M12 waterproof connector for RS232
• LAN: 1 x Waterproof Giga LAN RJ45 Connector
• Indicator: 1 x LED Indicator for power; 1 x LED Indicator for storage
• Buttons: 1 x Power Button; 1 x Reset Button
• Accessories included / supported: 100~240V AC to DC Adapter with waterproof connector; Power Cord; External USB cable with waterproof connector; External COM cable with waterproof connector; External LAN cable with waterproof connector; Waterproof caps; Manual; VESA screws
• Power Rating: 12V DC (M12 type)
