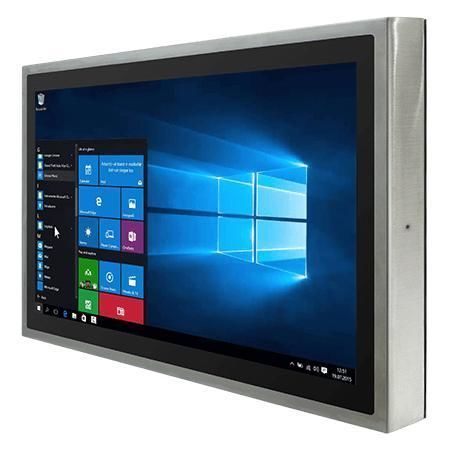

PCAP touchscreen panel PC W22IAD3S-SPA369

multitouch screen21.5"Intel® Core i5-1235U

Overview
The W22IAD3S-SPA369 is a 21.5-inch stainless steel Panel PC designed for hygienic and washdown environments. It features a true flat edge-to-edge front, SUS 316 / AISI 316 enclosure, full IP69K protection and a projected capacitive multi-touch (P-CAP) display suitable for food, beverage, pharmaceutical and chemical production areas.

Key features

• 21.5", 1920 x 1080 P-CAP multi-touch with flat edge-to-edge glass
• Intel® Core™ i5-1235U (12th Gen) 3.3 GHz, turbo up to 4.40 GHz
• SUS 316 / AISI 316 stainless steel housing for hygienic applications
• Full IP69K waterproof enclosure and waterproof I/O
• Support for Glove and Rain touch modes
• Plenty of I/O: USB2.0, RS232, RJ45 Gigabit LAN (waterproof connectors)
• VESA (default) and optional YOKE mounting; fanless design
• Optional optical bonding, WLAN/BT, expanded memory and storage

Product highlights

• Washdown-capable: Complies with IP69K for high-pressure, high-temperature wash and strict cleaning procedures.
• Hygienic stainless solution: SUS316 construction and fully sealed ports reduce contamination risk in food, beverage and chemical plants.
• Responsive multi-touch: P-CAP screen supports multi-finger gestures and operation with gloves when configured.

Certifications

• IP69K
• CE
• FCC

Technical specifications

• Model: W22IAD3S-SPA369
• Brand: Winmate
• Display: 21.5 inches, 1920 x 1080, 250 nits, 3000:1 contrast, active area 476.64 x 268.11 mm
• Touch: Projected Capacitive Multi Touch (P-CAP)
• CPU: Intel® Core™ i5-1235U (3.3 GHz, up to 4.40 GHz)
• Memory: 8GB (default); optional 16GB / 32GB
• Storage: 128GB SSD (default); optional 256/512GB, 1TB, 2TB, 4TB; optional 1 x SATA III for 2.5" drive
• Ethernet: 2 x Intel® Ethernet Controller; 1 x waterproof Gigabit RJ45
• Security: TPM 2.0
• OS: Optional Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Linux Ubuntu 22.04 (no Wake on Touch)
• WLAN / BT: optional
• Mechanical: 541 x 337 x 56.2 mm; VESA mount (default), YOKE optional; stainless housing; fanless
• Environment: Operating 0°C to 45°C; storage -20°C to 60°C; humidity 10%–90% RH non-condensing
• I/O: 1 x M12 waterproof for 2 x USB2.0; 1 x M12 waterproof for RS232; waterproof RJ45; LED indicators; Power and Reset buttons
• Power: 12V DC (M12 type)

Accessories

• 100~240V AC to DC adapter with waterproof connector, power cord
• External waterproof USB/COM/LAN cables with adapter, waterproof caps
• VESA screws, manual
