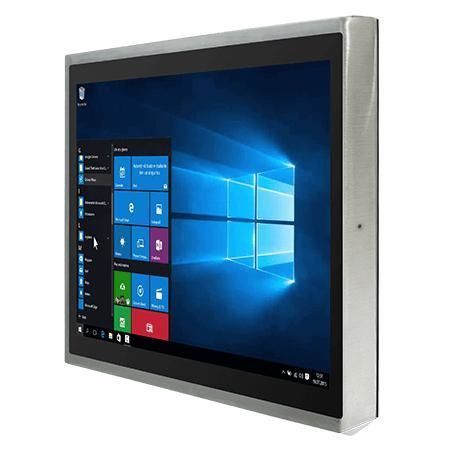

Multitouch screen panel PC R17IT3S-SPM169

PCAP touchscreentouch screen17"

Overview
The R17IT3S-SPM169 is a 17-inch stainless steel chassis Panel PC powered by 11th Generation Intel® Core™ i5-1135G7 (2.4GHz up to 4.2GHz). It features a 17" 1280 x 1024 projected capacitive (P-CAP) multi-touch display, full IP69K waterproof/dustproof enclosure with SUS 316 / AISI 316 stainless steel housing, and a fanless design for harsh or hygiene-sensitive environments.

Highlights

• 17" 1280 x 1024 P-CAP touchscreen
• Intel® Core™ i5-1135G7 (11th Gen) 2.4GHz (up to 4.2GHz)
• SUS 316 / AISI 316 stainless steel enclosure
• Full IP69K water and dust protection
• Waterproof ports with adapter cables for external connectivity
• Supports VESA and YOKE mounting
• Glove and Rain touch modes supported
• Optional optical bonding

Waterproof All-Around
The Panel PC fully complies with IP69K water and dust resistance to withstand high-pressure washdowns and strict hygiene cleaning processes required in food, beverage and pharmaceutical production environments.

Comprehensive Stainless Solution
Designed for automation in food, beverage and chemical industries, the SUS 316 / AISI 316 stainless steel housing provides corrosion resistance and surfaces that are easier to clean and sanitize.

Projected Capacitive Multi-Touch (P-CAP)
The high-sensitivity projected capacitive touch supports multi-touch gestures (pinch-to-zoom, rotate, drag) and reliable operation with glove and rain modes for industrial workflows.

Certifications

• IP69K
• CE
• FCC

Detailed specifications

• Display: 17.0 inches; Projected Capacitive Multi Touch Screen; Resolution 1280 x 1024; Panel Brightness 350 nits; Contrast Ratio 1000:1; View Angles 85/85/80/80; Active Area 337.920 x 270.336 mm
• Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
• Memory: 4GB (default); optional 8GB / 16GB / 32GB
• Storage: 128GB SSD (default); optional 256GB / 512GB / 1TB / 2TB / 4TB; 1 x SATA III bay for 2.5" SSD/HDD up to 2TB (optional)
• Ethernet: 2 x Intel® Ethernet Controller
• Security: TPM 2.0
• Operating System: Windows 11 IoT Enterprise 64-bit (optional); Windows 11 Pro 64-bit (optional); Linux Ubuntu 22.04 (optional, Wake on Touch not supported)
• WLAN / Bluetooth: optional
• Mechanical: Dimension 412 x 344 x 61.3 mm; Mounting: VESA (default) / Yoke (optional); Enclosure: SUS 316 / AISI 316 stainless housing; Cooling: Fanless design
• Environment: Operating humidity 10% to 90% RH non-condensing; Operating temperature 0°C to 45°C; Storage temperature -20°C to 60°C; IP rating IP69K
• IO Ports: 1 x M12 waterproof connector for 2 x USB2.0; 1 x M12 waterproof connector for RS232; 1 x waterproof Gigabit LAN RJ45 connector; Indicators: 1 x LED power, 1 x LED storage
• Control: 1 x Power Button; 1 x Reset Button
• Accessory (included / available): 100~240V AC to DC adapter with waterproof connector; power cord; external USB/COM/LAN cables with waterproof connectors; waterproof caps; manual; VESA screws
• Power: 12V DC (M12 type)

Applications
Intended for food, beverage, pharmaceutical, chemical and other hygiene-sensitive industrial applications that require high ingress protection, corrosion resistance and easy cleaning.

Technical specifications

• Model: R17IT3S-SPM169
• Display: 17" P-CAP, 1280 x 1024
• CPU: Intel® Core™ i5-1135G7 (11th Gen)
• Memory: 4GB default, up to 32GB optional
• Storage: 128GB SSD default, upgradable; optional SATA III bay
• Enclosure: SUS 316 / AISI 316 stainless steel, IP69K
• Mounting: VESA (default), Yoke (optional)
• IO: M12 waterproof USB/COM, waterproof RJ45 LAN
• Power: 12V DC (M12)
• Certifications: IP69K, CE, FCC
