PCAP touchscreen panel PC W24IE3S-SPA269
multi-touch screen24"Intel® Atom x6413E

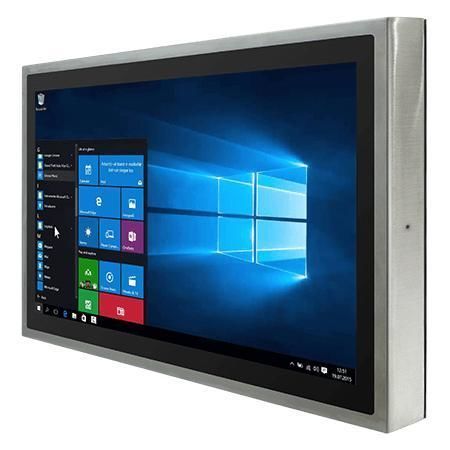

PCAP touchscreen panel PC - W24IE3S-SPA269 - Winmate, Inc. - multi-touch screen / 24" / Intel® Atom x6413E
PCAP touchscreen panel PC - W24IE3S-SPA269 - Winmate, Inc. - multi-touch screen / 24" / Intel® Atom x6413E
PCAP touchscreen panel PC - W24IE3S-SPA269 - Winmate, Inc. - multi-touch screen / 24" / Intel® Atom x6413E - image - 2
PCAP touchscreen panel PC - W24IE3S-SPA269 - Winmate, Inc. - multi-touch screen / 24" / Intel® Atom x6413E - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
PCAP touchscreen, multi-touch screen
Display size
24"
Processor
Intel® Atom x6413E
Resolution
1920 x 1080
Operating system
Linux® Ubuntu™, Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Windows 11 Pro
Construction
fanless, stainless steel frame
Mounting
VESA mounting
Applications
for the food industry, for the pharmaceutical industry, for the chemical industry, for hygienic applications
Protection level
IP69K
Other characteristics
with external power adapter
Memory size

Min.: 4 GB

Max.: 16 GB

Description

Key Features
  • 24" display, 1920 x 1080, projected capacitive (P-Cap) multi-touch with true flat, edge-to-edge front
  • Intel Atom x6413E (Elkhart Lake) processor (up to 3.0 GHz)
  • SUS 316 / AISI 316 stainless steel housing for food, beverage and chemical environments
  • Full IP69K waterproof and dustproof enclosure (high-pressure, high-temperature washdown)
  • Touch modes: Glove and Rain mode supported
  • Multiple I/Os: M12 waterproof connectors for 2 x USB 2.0, M12 RS232, waterproof Giga LAN RJ45
  • Waterproof ports with adapter cables for external connectivity
  • Mounting: VESA (default) and Yoke mount (optional)
  • Optional optical bonding; fanless design


Certifications
  • IP69K
  • CE
  • FCC


Overview
  • Designed to meet strict hygiene and high-pressure cleaning requirements in Food, Beverage and Pharmaceutical industries with a fully sealed IP69K stainless enclosure.
  • Comprehensive stainless-steel HMI and Panel PC solution for automation tasks in corrosive or hygienic production environments.
  • Projected capacitive multi-touch (P-CAP) delivers high sensitivity for multi-finger gestures, supporting efficient operation even with gloves or wet hands.


Detailed Specifications
  • Display: 24.0 inches; Projected Capacitive Multi-Touch; Resolution 1920 x 1080; Panel Brightness 250 nits; Contrast Ratio 3000:1; View Angles 89/89/89/89; Active Area 527.04 x 296.46 mm.
  • System: Processor Intel Atom x6413E (up to 3.0 GHz); Memory 4GB (default), optional 8GB / 16GB; Storage 128GB SSD (default), optional 256GB / 512GB / 1TB / 2TB SSD; Ethernet 1 x Intel Ethernet Controller; OS options: Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Windows 10 IoT Enterprise (64-bit), Linux Ubuntu 22.04 (optional); WLAN / Bluetooth optional.
  • Mechanical: Dimensions 620 x 390 x 56 mm; Mounting VESA (default) and Yoke mount (optional); Enclosure SUS 316 / AISI 316 stainless steel; Fanless cooling.
  • Environment: Operating humidity 10% to 90% RH non-condensing; Operating temperature 0°C to 45°C; Storage temperature -20°C to 60°C; IP rating IP69K.
  • IO Ports: 1 x M12 waterproof connector for 2 x USB 2.0; 1 x M12 waterproof connector for RS232; 1 x waterproof Giga LAN RJ45 connector; Indicators: 1 x LED power, 1 x LED storage.
  • Control: 1 x Power button; 1 x Reset button.
  • Accessories & Power: 100~240V AC to DC adapter with waterproof connector; power cord; external USB/COM/LAN cables with waterproof connectors; waterproof caps; manual; VESA screws. Power input: 12V DC (M12 type).


Features / Technical specifications
  • Model: W24IE3S-SPA269
  • Brand: Winmate
  • Display size / resolution: 24.0" / 1920 x 1080
  • Touch type: Projected Capacitive Multi-Touch; Glove / Rain mode supported
  • Processor: Intel Atom x6413E (up to 3.0 GHz)
  • Memory: 4GB default; 8GB / 16GB optional
  • Storage: 128GB SSD default; up to 2TB optional
  • Enclosure material: SUS 316 / AISI 316 stainless steel
  • Ingress protection: IP69K
  • Mounting: VESA (default), Yoke optional
  • IO: M12 USB (2 x USB2.0), M12 RS232, Waterproof RJ45 Giga LAN
  • Operating temp: 0°C to 45°C; Storage temp: -20°C to 60°C
  • Certifications: CE, FCC, IP69K
