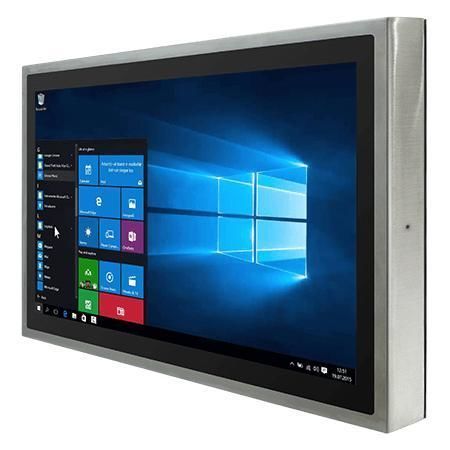

PCAP touchscreen panel PC W24IT3S-SPA269

multitouch screen24"Intel® Core™ i5-1135G7

Overview
The W24IT3S-SPA269 is a 24-inch stainless steel IP69K Panel PC designed for industrial HMI applications in food, beverage, pharmaceutical and chemical environments. It combines a true flat, edge-to-edge 1920 x 1080 projected capacitive multi-touch display with a SUS 316 / AISI 316 enclosure, fanless cooling and waterproof M12 I/O for reliable operation in washdown and corrosive conditions.

Key features

• 24" 1920 x 1080 projected capacitive (P-CAP) multi-touch, true flat edge-to-edge front
• 11th Gen Intel Core i5-1135G7 (2.4 GHz up to 4.2 GHz)
• SUS 316 / AISI 316 stainless steel housing for corrosion resistance
• Full IP69K enclosure for high-pressure and high-temperature washdown
• Fanless design for dust- and contamination-free operation
• Glove and Rain touch modes for industrial use
• Multiple waterproof I/Os (M12 connectors) including USB, RS232 and Gigabit RJ45
• Optional optical bonding and WLAN/Bluetooth
• VESA mount standard; Yoke mount optional

Certifications

• IP69K
• CE
• FCC

Applications and benefits

• Suitable for HMI and control stations in food, beverage, pharmaceutical and chemical plants requiring rigorous cleaning procedures.
• Stainless enclosure and true-flat front reduce contamination points and simplify sanitation.
• Waterproof connectors and fanless architecture minimize maintenance and downtime in wet environments.

Technical specifications

• Model: W24IT3S-SPA269
• Display: 24.0 inches P-Cap multi-touch, Resolution 1920 x 1080 (Full HD)
• Panel brightness: 250 nits; Contrast ratio: 3000:1; View angles: 89/89/89/89; Active area: 527.04 x 296.46 mm
• Processor: Intel Core i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory: 4 GB default; optional 8 GB / 16 GB / 32 GB
• Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; optional 1 x SATA III for 2.5" SSD/HDD up to 2 TB
• Ethernet: 2 x Intel Ethernet Controller; 1 x Waterproof Gigabit RJ45
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Linux Ubuntu 22.04 (Linux does not support Wake on Touch)
• WLAN / Bluetooth: optional
• Mechanical dimensions: 620 x 390 x 56 mm
• Mounting: VESA (standard), Yoke (optional)
• Enclosure: SUS 316 / AISI 316 stainless steel
• Cooling: fanless
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 45°C; Storage temperature: -20°C to 60°C
• IP rating: IP69K
• I/O ports: 1 x M12 waterproof connector for 2 x USB2.0; 1 x M12 waterproof connector for RS232; 1 x waterproof Gigabit LAN RJ45
• Indicators & buttons: 1 x LED power, 1 x LED storage; 1 x Power button, 1 x Reset button
• Power rating: 12V DC (M12 type)

Accessories and mounting

• 100~240V AC to DC adapter with waterproof connector and power cord
• External USB/COM/LAN adapter cables with waterproof connectors and protective caps
• VESA screws; optional Yoke mount
